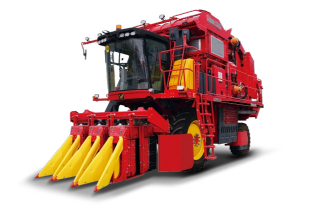

Cotton harvester 4MZD-3

Key product advantages (structured, for advertising block / brief description)

Maximum collection efficiency (up to 93%)

Optimized spindle trajectory and adjustable drum speed of the PR016 assembly head
Minimal mechanical damage to cotton fiber, low impurity content in finished raw material

Powerful drive unit and smooth transmission

Cummins 325 hp (424 kW) engine with certified reliability for heavy field conditions
Electronically controlled hydrostatic transmission + optional 4WD, adaptation to complex field terrain
Operating speed up to 7.1 km/h ensures high daily productivity

Integrated pressing system and anti-clogging protection

Adjustable uniform cotton feeding with forced loading, preventing clogging of working components
Customizable diameter of the pressing module for cotton moisture and density, finished module weight up to 1400 kg

Intelligent digital control

CAN-bus real-time system: automatic parameter monitoring, alarm signaling, cotton moisture measurement
Proprietary software, remote update capability for custom production tasks

Premium operator comfort

In-house designed automotive ergonomic cabin with air conditioning
Electro-hydraulic gearbox shifting, fluid coupling, adjustable seat and controls
Built-in USB port and 12V power supply for auxiliary equipment

Low operating costs and high reliability

Key electrical components imported, main working units developed in-house
Proven design with automatic dimension adjustment, easy transport and maintenance

Full service support

The service network covers all cotton regions of Xinjiang and major export markets
Operator training, round-the-clock technical support, original spare parts warehouse, official warranty

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed product description (full card for publication)

General model description

The 4MZD-3 cotton picker is an independently developed model by Shandong Swan Cotton Industrial Machinery Stock Co., Ltd., designed to meet the modern requirements of mechanized cotton harvesting. This model is specifically adapted for operation in Xinjiang, China's largest cotton-growing region, and is widely used by major agricultural holdings and farms.

Thanks to its well-thought-out design, high maneuverability, stable operation, and minimal failure rate, this machine has gained widespread recognition among users both in the domestic Chinese market and in over 30 countries worldwide. The cotton picker combines high productivity, intelligent control, and low operating costs, making it an optimal solution for large-scale cotton harvesting.

Design features and working units

PR016 assembly head

Equipped with three standard cleaning heads featuring optimized spindle trajectory geometry and adjustable drum rotation speed. The total number of spindles is 1680, ensuring dense cotton pickup without fiber damage. Collection efficiency reaches 93%, with no large impurities or debris in the finished raw material.

Cotton feeding and pressing system

The adjustable uniform feeding system with forced loading prevents clogging of working channels even when handling wet or densely grown cotton. The diameter of the pressing module is adjustable according to weather conditions, raw material moisture, and required bale density. The weight of the finished pressed module is 1400 kg, simplifying storage and transportation of the harvested cotton.

Power and transmission system

The combine is equipped with a reliable Cummins diesel engine with 325 horsepower (424 kW), adapted for prolonged field loads and temperature variations. An electronically controlled hydrostatic transmission ensures smooth gear shifting, and an optional 4WD system guarantees maneuverability on wet, uneven, and sandy fields. The working speed range in the field is from 0 to 7.1 km/h, and the transport speed on roads is up to 27 km/h.

Intelligent CAN-bus control system

The built-in digital control system based on the CAN bus performs continuous real-time monitoring of all key parameters: engine temperature, hydraulic system pressure, cotton moisture, and working unit status. In the event of malfunctions, an emergency alarm is activated. The proprietary software allows flexible firmware updates for new tasks and functional upgrades without replacing hardware components.

Premium operator cabin

The cab is designed according to automotive ergonomics standards, fully isolated from noise and dust. The operator's seat and all controls are adjustable to suit height and individual preferences. Standard equipment includes climate control (air conditioning), a USB port for charging devices, and a universal 12V power source. Electro-hydraulic gear shifting and a hydraulic clutch reduce the operator's physical strain during prolonged work.

Technical specifications (table)

Parameter	Unit of measurement	Meaning
General parameters	—	—
Curb weight	T	24
Engine power	kW (hp)	424 (325)
Minimum turning radius	m	6
Drive	—	Full 4WD (optional)
Field travel speed (1st/2nd gear)	km/h	0–7.1 / 0–8.5
Road travel speed (1st/2nd gear)	km/h	0–15 / 0–27
Dimensions (transport position, L×W×H)	mm	11010 × 3300 × 3900
Dimensions (working position, L×W×H)	mm	9680 × 4200 × 4600
Wheelbase	mm	4095
Harvesting head parameters	—	—
Number of assembly heads	pcs.	3
Spindle housings (front/rear)	pcs.	16/12
Spindles per housing	pcs.	20
Total number of spindles	pcs.	1680
Capacity and pressing	—	—
Weight of finished pressed module	kg	1400
Fuel tank volume	l	600
Washing fluid tank volume	l	700
Lubrication reservoir volume	l	140

Transportation and quality control

The combine harvester features a design with automatic dimension adjustment, simplifying transportation on highways and storage. For international export deliveries, a special packaging and rigid fastening system is used to prevent damage to components during sea and road transport.

Each unit of equipment undergoes comprehensive factory inspection: external inspection of geometry and coating, functional testing of all hydraulic, electrical, and mechanical systems, documentation verification, and tests for compliance with international safety standards (electrical, mechanical, chemical).

Service Support

The company provides a full cycle of service support at all stages of operation:

Pre-sales consulting and configuration selection tailored to specific field conditions
Training operators and technical personnel in using the intelligent management system
On-site technician teams (2–3 specialists per facility) for prompt troubleshooting
Warehouses of original spare parts in all cotton-growing regions, 24/7 supply of components
Official warranty and post-warranty technical maintenance

About the manufacturer

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a publicly listed high-tech enterprise founded in 1946, under the Shandong Province Supply and Marketing Cooperative. The company integrates R&D centers, precision manufacturing, and a global marketing network, specializing in comprehensive solutions for mechanized and digital cotton processing.

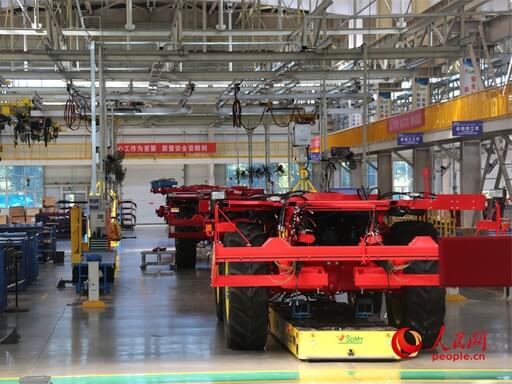

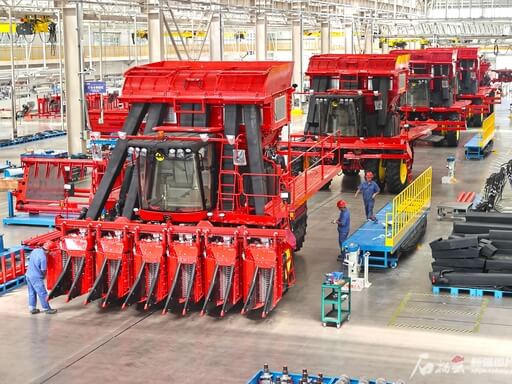

Production and R&D facilities are located in China (Jinan, Wujiaqu, Hailar) and the United States (Montgomery). Products are exported to over 30 countries, and the company holds a leading position in the Chinese market for cotton harvesting machinery. Swan is a participant in China's national programs for agricultural digitalization and the development of intelligent agricultural machinery.
