Equipment for pre-treatment of raw cotton
The cleaning section is designed with a non-concentric structure, which ensures shaking cleaning of raw cotton.
The cleaning efficiency is at least 50% without damaging the fiber.
The recovery shaft effectively collects missed cotton, reducing raw material losses.
The overall design is well thought out, easy to adjust, and operation and maintenance are convenient.
Product Introduction

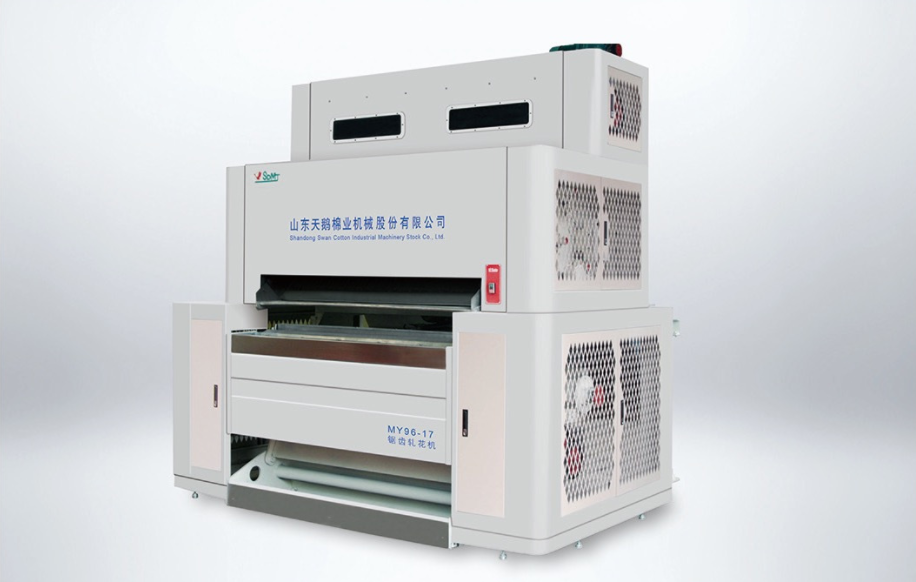

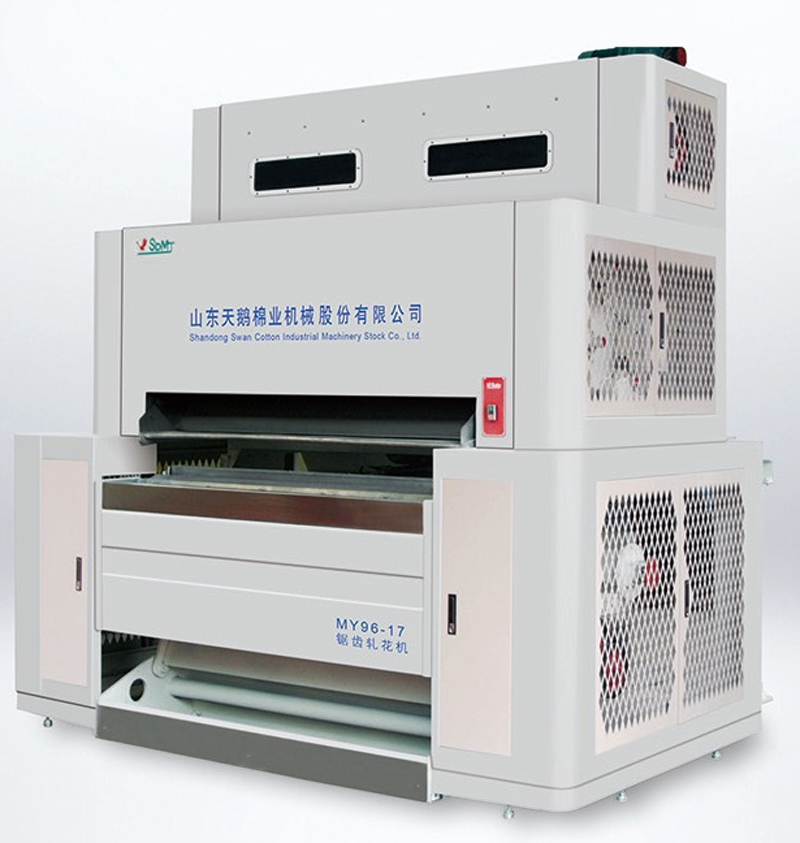

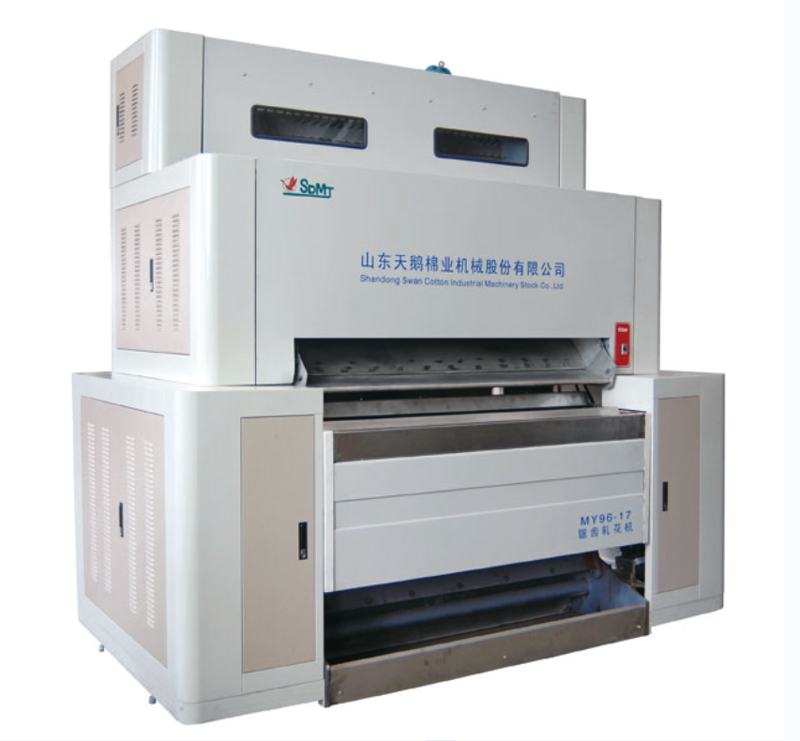

The MY96-17 cotton gin is designed for small ginning plants. Depending on the quality of the raw cotton, its throughput ranges from 600 to 1,300 kg per hour. The machine's primary purpose is to separate the fiber from the seed and remove impurities from raw cotton.
This cotton gin is characterized by stable operation, high efficiency and reliability in operation.
Specifications
Parameter |
Meaning |
Design capacity (kg/h) |
600–1200 |
Installed capacity (kW) |
46.12 |
Quality of fiber ginning |
Meets or exceeds the national standard for denim cotton of the same grade |
Noise level |
90 dB(A) |
Number of saws (pcs.) |
96 |
Saw diameter (mm) |
Φ320 |
Distance between saws (mm) |
17 |
Brush cylinder diameter (mm) |
Φ380 |
Overall dimensions (W×D×H) (mm) |
2385×2850×2750 |
Machine weight (kg) |
4200 |

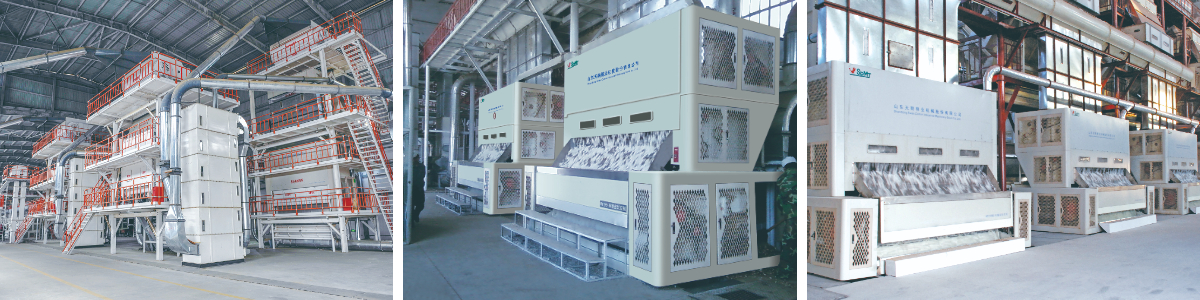

Product Application
Client visit
Packaging and delivery
Customized packaging method is supported according to customer requirements.
(1) Each machine is securely fastened and secured in the container to ensure safe delivery to the destination port.
(2) The entire process of loading products and sealing the container is recorded on photo or video – the entire process is transparent and controllable.
(3) We cooperate with reliable shipping companies, key stages of delivery are updated in real time.
Product Inspection
Every product leaving the factory undergoes rigorous and comprehensive testing, which includes the following steps:
(1) Visual inspection: The appearance of the product is checked to ensure that it meets the requirements, including color, shape, size, surface quality, etc. The inspection is carried out visually or using auxiliary instruments (e.g. microscopes, measuring instruments).
(2) Functional testing: The correct operation of the product's functions is verified. The test is conducted by operating the product, performing functional tests, or using specialized test equipment to confirm its characteristics and performance.
(3) Safety testing: The product's compliance with applicable safety standards and regulations is verified. This includes electrical, mechanical, and chemical safety testing.
(4) Packaging inspection: The integrity of the packaging, legibility of markings and compliance of packaging materials with established requirements are checked. This guarantees the safety of products during transportation and storage, as well as correct identification.
About Shandong Swan Cotton Industrial Machinery Stock Co., Ltd.
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is one of the largest and most reputable manufacturers of cotton harvesting and ginning equipment in China. Founded in 1946, the company is part of the Shandong Provincial Union of Supply and Marketing Cooperatives. Swan combines research, design, manufacturing and service to provide comprehensive solutions for mechanized and intelligent cotton processing.
The company's products are exported to more than 30 countries and occupy a strong position in the domestic market of China. Through the use of advanced technologies and the implementation of the concept of "smart manufacturing", Swan is confidently moving towards the goal of becoming a world leader in the field of cotton ginning and processing equipment.
The company operates four modern manufacturing and engineering centers—in Shandong Province, Xinjiang, Inner Mongolia, and the United States. Swan is a high-tech enterprise, a partner in China's national science and technology programs, and a recognized innovator in the development and production of cotton industry equipment.
