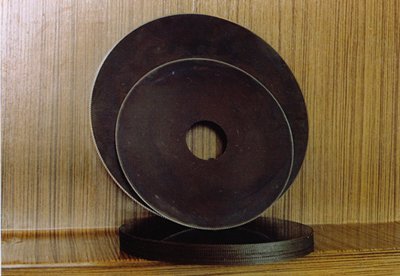

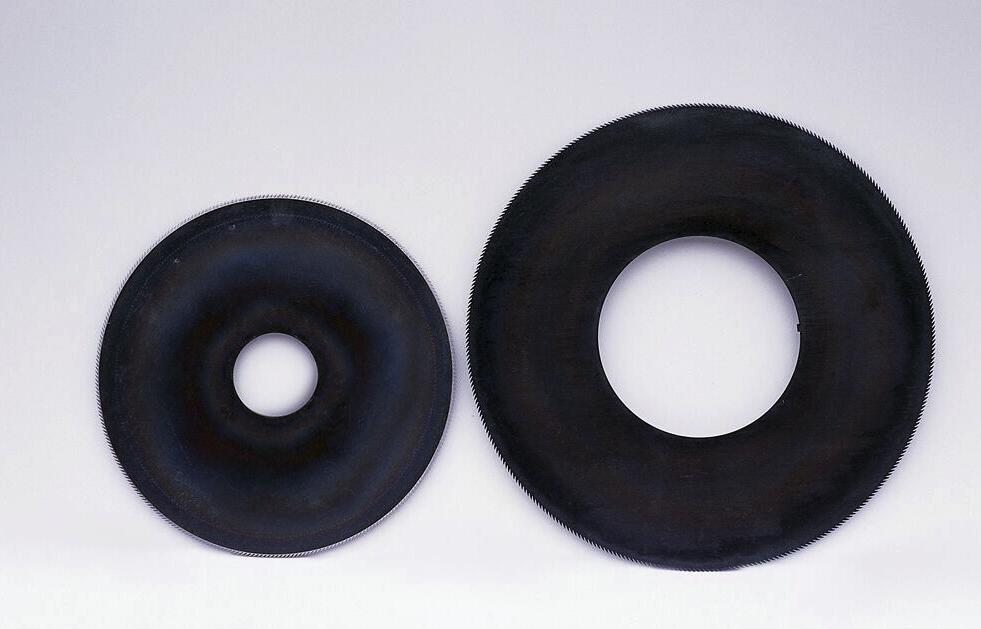

Cotton gin saw blade
1. Using imported material from the USA, high strength, good toughness and long service life.
2. Uniform thickness and smoothness, high quality fiber (lint) and less knots (neps).

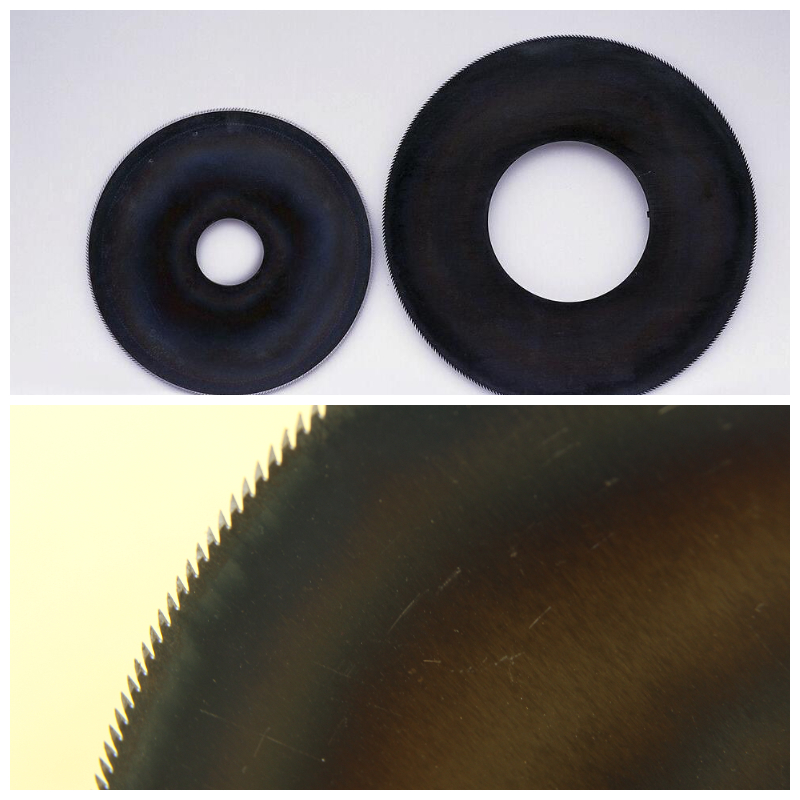

3. Patented variable pitch tooth design for different processing conditions, high adaptability.
4. The 406 saw (diameter 406mm) is made by Shandong Swan USA, Inc., supplied in original to guarantee the quality.
? Swan Saw Blades for Ginning and Delinting
Swan brand ginning and delinting saw blades use imported sheet metal from the United States for longer service life and better quality. Adopting the world's leading automatic saw blade production machines ensures high manufacturing precision and consistent quality, allowing us to adapt to the production needs of different customers. High production efficiency ensures more timely delivery of orders. The products are safe, environmentally friendly and do not pollute the environment.
⚙️ Technical Parameters
Characteristic (Parameter) |
Ginning Saws 406 |
Ginning Saws 320 |
Delinting Saws 320 |
Model |
Gynating saw 406 |
Gyning saw 320 |
Delinting saw 320 |
Qty of Saws |
330 |
304 |
304 |
External Dia. (O.D) |
406 |
320 |
320 |
Internal Diameter |
174.6 |
74.6 |
74.6 |
Surface hardness |
35 |
35 |
35 |
Surface Planeness |
0.4 |
0.4 |
0.4 |
Note: Units of measurement for diameters, flatness and hardness (probably HRC) are not given in the original, but are usually mm and HRC respectively.

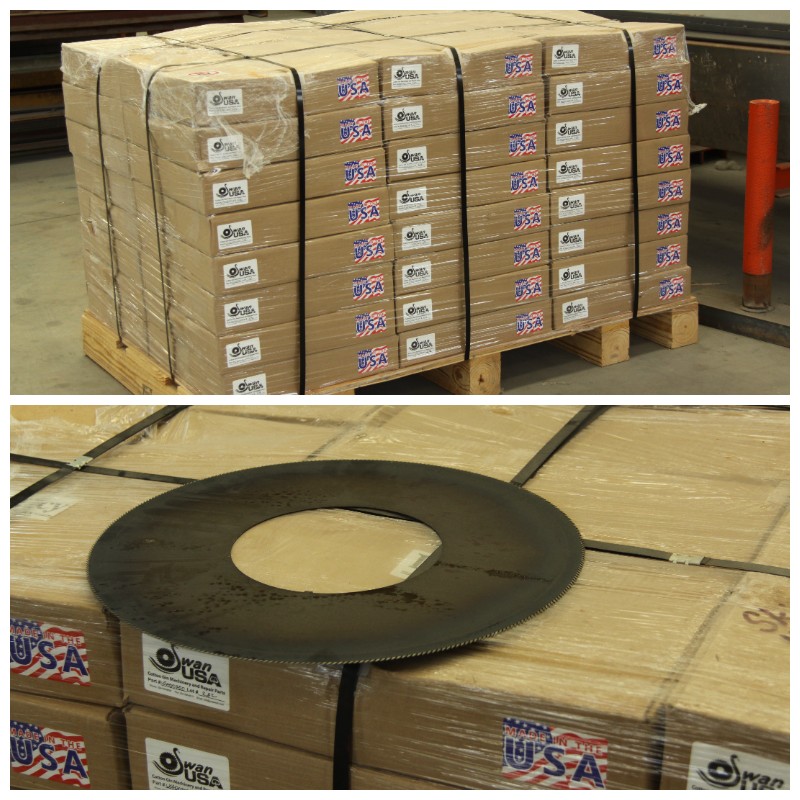

? Packaging and Delivery
Packaging Method:
Waterproof paper + PE film or individual packing as per buyer's requirement.
1. Transportation Flexibility
The transportation mode is flexible and changeable, and different modes of transportation can be selected according to the needs of customers.
2. Reliability of Packaging
The packaging material is strong and durable, capable of withstanding long-distance international transportation.
3. Individual Approach
Customer focus, possibility of individual packaging.
? Product Inspection
Shandong Swan Cotton Industrial Machinery Stock Co.,Ltd carries out strict comprehensive testing for each factory product, mainly including the following:
(1). Appearance inspection:
Checking whether the product's appearance meets requirements, including color, shape, size, surface cleanliness, etc. This can be done by visual inspection or using auxiliary instruments (e.g. microscopes, measuring instruments).
(2). Size and weight testing:
Measuring the size and weight of a product and comparing them with design specifications to ensure compliance. This can be accomplished using measuring instruments, scales, and other equipment.
(3). Material and component testing:
Verification of the conformity of materials and components used in the product with the specified requirements. This can be accomplished using chemical and spectral analysis, tensile testing, and other methods.
(4). Label and instruction manual inspection:
Reviewing product labeling and instructions for use for accuracy, clarity, completeness, and compliance with applicable codes and standards.
