Grain drying complex
1. The use of counter-current drying, tempering (resting) and cooling technologies: Makes the dried grain as close in quality as possible to the effect of natural drying.
2. Adopting drying technology with high, medium and low temperature control: Ensures drying quality and reduces energy consumption.
3. Using uniform distribution technology in the ventilation section: Allows for uniform heating and dehydration of the entire grain layer, ensuring uniform grain moisture after drying.
4. Double-shell integrated design, waste heat recovery: Reduces energy consumption, provides aesthetic appearance and protects the environment.
5. The whole process of mechanized drying storage, online detection, intelligent control, automatic adjustment of drying temperature, video surveillance, emergency alarm, one-button start and stop.

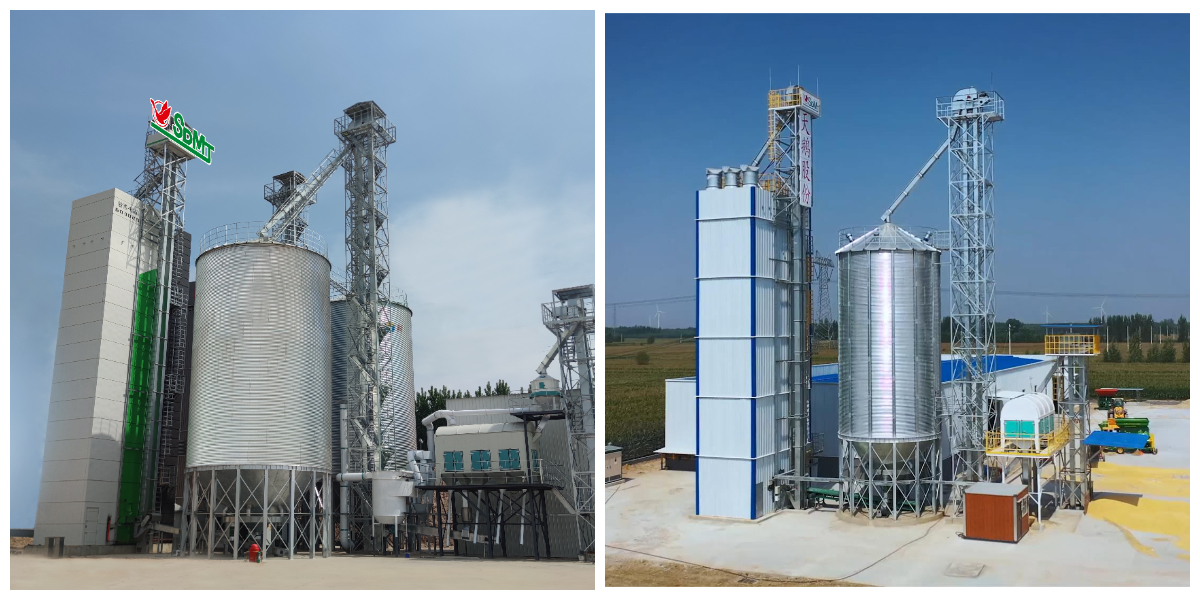

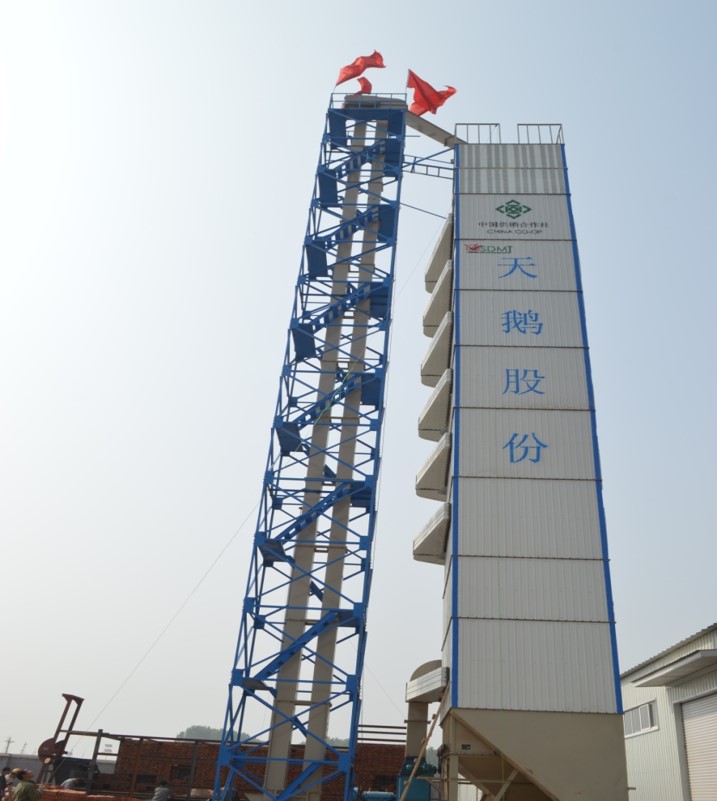

Intelligent Grain Drying System
Product Introduction
The intelligent grain drying system is suitable for grain drying. It utilizes advanced technologies and control systems to efficiently process large quantities of grain, ensuring its quality and safety during drying.
An intelligent grain drying system consists of a drying tower body, a heating system, a circulation fan, a control system, and more. During the drying process, grain is fed into the drying tower, where the air is heated by the heating system, creating hot air. The hot air is evenly distributed over the grain pile by a circulation fan, causing water to evaporate from the surface and interior of the grain. The control system simultaneously monitors and regulates temperature, humidity, wind speed, and other parameters in the drying tower, ensuring the precise and accurate drying process.
Intelligent grain drying systems are widely used in the grain storage and processing industry. They can be used to dry a variety of crops, including grain, beans, oilseeds, and more. By using intelligent grain drying towers, farmers and grain processing plants can better manage and protect grain resources, improve food quality, and reduce losses, thereby providing the market with safer, higher-quality food products.
1. Technical Specifications
Capacity is indicated in tons/day at different degrees of moisture removal (Precipitation):
Model |
Capacity (t/day) |
Moisture removal 5% |
Moisture removal 10% |
Moisture removal 15% |
Moisture removal 20% |
SHSN-100 |
300 |
150 |
100 |
75 |
|
SHSN-150 |
450 |
225 |
150 |
112 |
|
SHSN-200 |
600 |
300 |
200 |
150 |
|
SHSN-300 |
900 |
450 |
300 |
225 |
|
SHSN-500 |
1500 |
750 |
500 |
375 |
|
SHSN-600 |
1800 |
900 |
600 |
450 |
2. Product Inspection
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. carries out strict comprehensive testing for each factory product, including the following:
(1). Appearance inspection: Checking whether the product's appearance meets the requirements, including color, shape, size, surface cleanliness, etc.
(2). Functional Test: Checking whether a product function works correctly by operating it or using special test equipment.
(3). Packaging inspection: Checking the integrity of the packaging, the clarity of the markings and the compliance of the packaging materials with the requirements.
(4) Label and instruction manual inspection: Checking the accuracy, clarity, completeness of labelling and compliance with relevant regulations and standards.

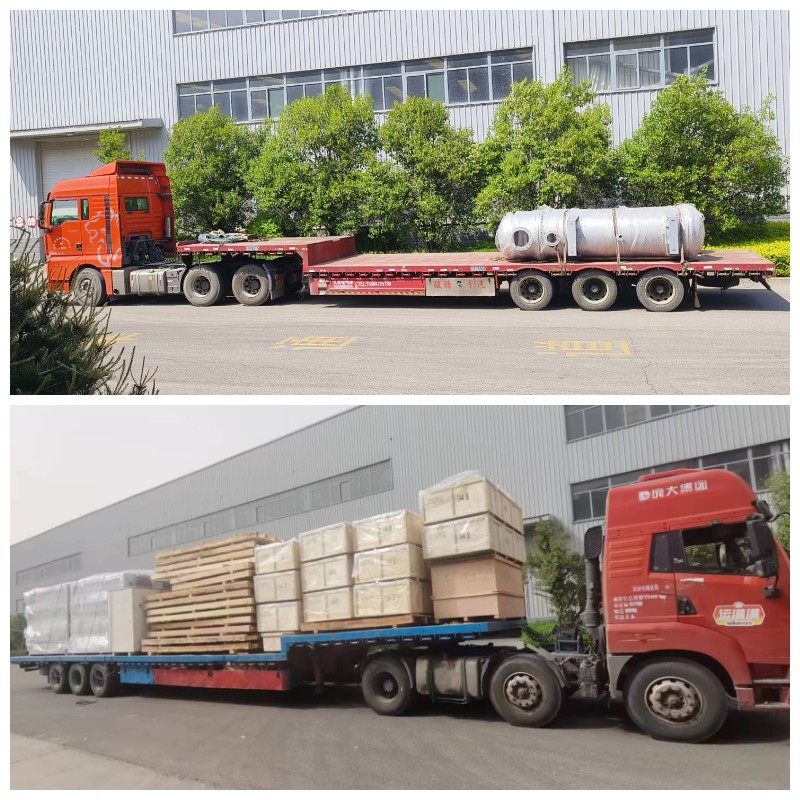

3. Packing and Delivery
(1) Each machine is securely fixed and reinforced in the container to ensure safe delivery to the destination port.
(2) The entire process of product loading and container sealing is recorded by photo or video, making the entire process visible and controllable.
(3). Cooperation with a reliable shipping company, key time points (stages) are updated in real time.
4. Information about the Company
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a joint-stock company owned by Shandong Supply and Marketing Cooperatives. Founded in 1946, the company integrates research, production, marketing, and capital management, providing comprehensive services for mechanized, intelligent, and information-based cotton processing equipment. Its products have been exported to over 30 countries.
The company is focused on advancing the transformation of the cotton industry and creating a new generation of smart factories. It is actively expanding into the intelligent agricultural machinery industry and entering the high-tech equipment manufacturing sector.
The company has four technical centers and production bases, three national high-tech enterprises and six provincial innovation platforms, being a high-tech enterprise of Shandong Province and a participant in national key programs.
