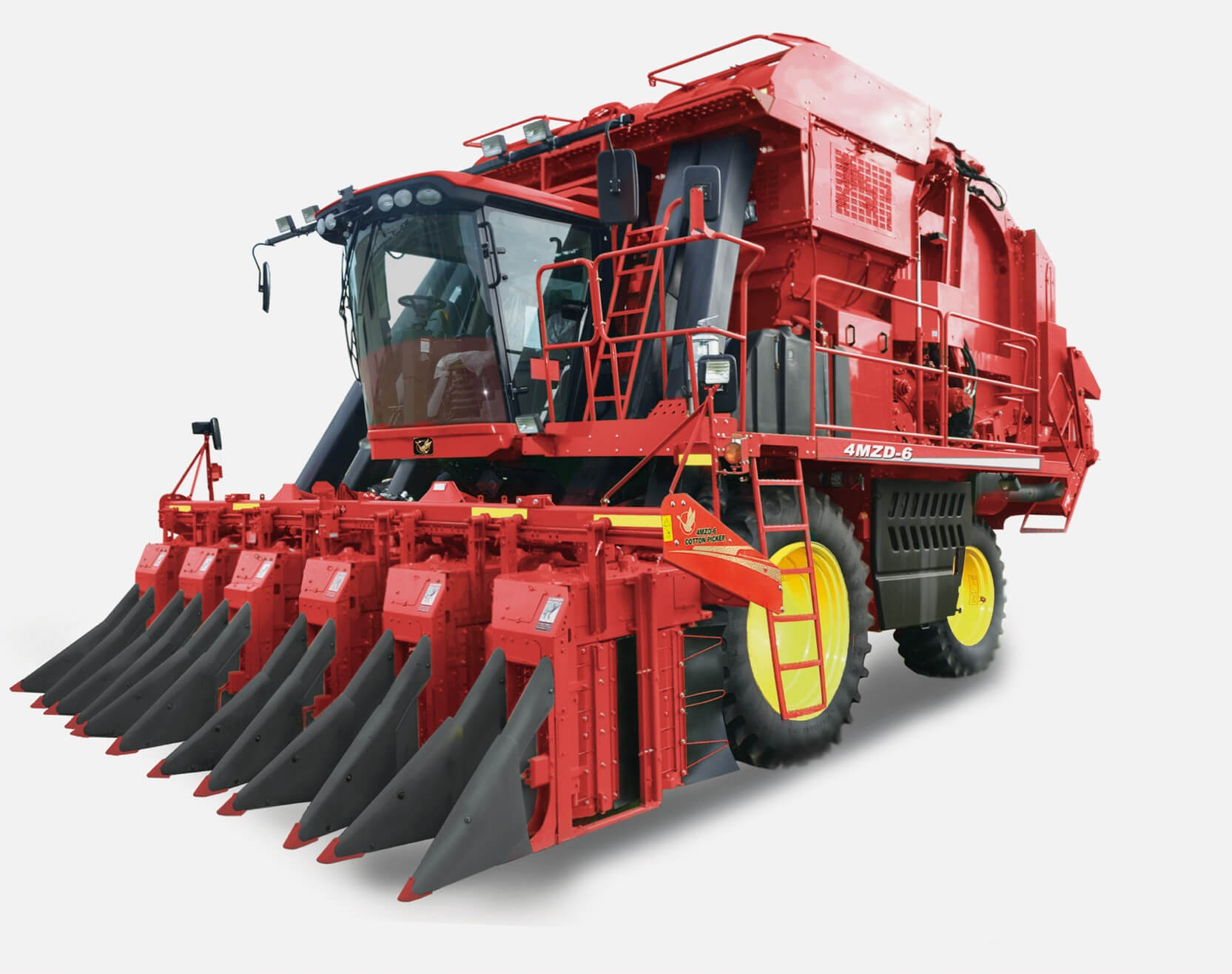

4MZD-6 cotton picker

Product benefits

High cleaning performance with gentle cotton picking. Minimal damage to cotton fiber, low impurity content, productivity 30% higher than analogs, working speed up to 7.1 km/h.
Reliable power unit and all-wheel drive. Cummins engine, all-wheel-drive design, PRO16 picking head ensure stable operation in difficult field conditions.
Cotton pressing system with adjustable bale weight of 700–2200 kg, effectively prevents clogging of units, simplifies storage and transportation of harvested cotton.
Powerful ventilation system effectively removes dust and plant impurities, increasing the purity of harvested cotton.
Comfortable ergonomic cab, Power Shift transmission, intuitive operator controls. Equipped with air conditioning, USB port, 12 V outlet.
Intelligent CAN-bus system. Provides continuous monitoring of equipment parameters, fault diagnostics, and supports autopilot function.
Full-service support. A warehouse of original spare parts operates at the sites of operation, round-the-clock technical support from specialists, and timely troubleshooting.
Strict multi-stage quality control before shipment, reliability, and low failure rate during long-term operation.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

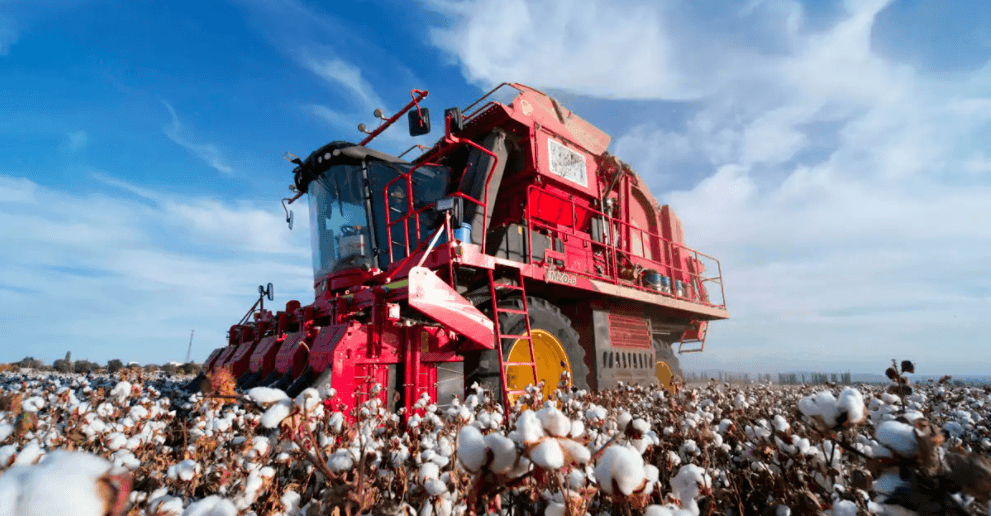

The 4MZD-6 cotton picker is an in-house development of Shandong Swan Cotton Industrial Machinery Stock Co., Ltd., created to meet the real needs of the cotton-growing market. The machine performs cotton picking and pressing directly in the field, reducing transport losses and greatly simplifying raw material logistics. This model is widely used in Xinjiang, China's main cotton-growing region, and has received high praise from users for its high cotton cleaning rate, stable operation, and low failure rate.

Operator comfort and ergonomics

The modern automotive-style cab provides a high level of comfort during long hours of work in the field. The seat and all controls are adjustable to suit the individual driver. The cab is equipped with an air conditioning system, a USB port, and a 12 V outlet, creating comfortable working conditions in any weather.

Power unit and performance indicators

The combine harvester is equipped with a Cummins engine with a rated power of 570 kW (770 hp), 4WD full drive, and a modern harvesting head. The maximum working speed in a cotton field reaches 7.1 km/h, with a productivity increase of more than 30% compared to base models. Road speed when traveling on highways is up to 27 km/h, and the minimum turning radius is 6.7 m, ensuring good maneuverability in the fields.

Intelligent control system

Thanks to the human-machine interface and CAN-bus, the operator can see all working parameters and the condition of the combine's components in real time. Automatic fault diagnosis and an autopilot function are available, allowing timely adjustment of operating modes and improved harvesting efficiency.

Baling system and tank capacity

Equipped with a system for forming adjustable cotton bales weighing from 700 to 2200 kg. Fuel tank capacity is 1400 L, washing liquid tank 1363 L, lubricant tank 257 L, ensuring long continuous operation without frequent refueling. A total of 6 harvesting heads are installed, with a total of 3360 working picking spindles.

Specifications

Parameter group	Parameter name	Unit of measurement	Meaning
Main machine parameters	Total weight	T	30
	Travel speed in cotton field, category I	km/h	7.1
	Travel speed in cotton field, category II	km/h	8.5
	Travel speed on highway, category I	km/h	15
	Travel speed on highway, category II	km/h	27
	Rated motor power	kW	570
	Minimum turning radius	m	6.7
	Transport dimensions (L × W × H)	mm	11940 × 3200 × 4360
	Cotton harvesting dimensions (L × W × H)	mm	10135 × 5945 × 5245
	Machine base	mm	4318
	Drive mode	—	4WD (all-wheel drive)
Harvesting head parameters	Number of harvesting heads for cotton picking	pcs.	6
	Number of seat rods	pcs.	Front 16, rear 12
	Number of assembly spindles per rod	pcs.	20
	Total number of assembly spindles	pcs.	3360
Capacity parameters	Weight of pressed cotton bale	kg	700–2200
	Diesel fuel tank volume	l	1400
	Cleaning liquid tank volume	l	1363
	Lubricant tank volume	l	257

Service, logistics and quality control

For deliveries to international markets, special packaging and a placement scheme are used for large-sized equipment to prevent damage during transportation. Each machine is accompanied by a team of 2–3 technical specialists to support its operation. In the regions where the equipment is used, a warehouse of original spare parts has been set up to ensure round-the-clock supply of components.

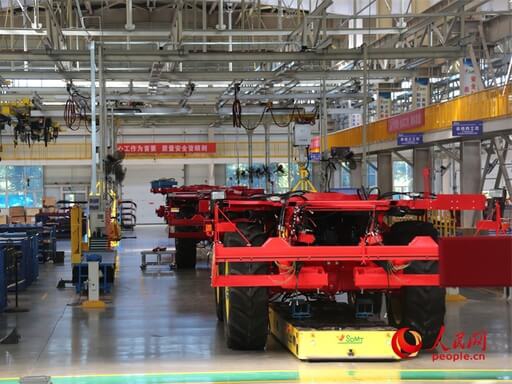

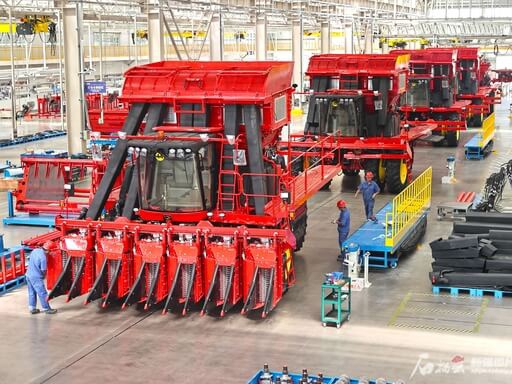

Each combine harvester undergoes comprehensive factory testing: visual inspection of dimensions and surface quality, functional performance tests, verification of labeling and operational documentation, and testing for compliance with international safety standards.

About the manufacturer

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. was founded in 1946 and is a leading Chinese manufacturer of cotton harvesting and ginning equipment. Its products are exported to more than 30 countries worldwide. The company covers the entire cycle: scientific research, design, manufacturing, and after-sales service, offering comprehensive solutions for mechanized and intelligent cotton processing.
