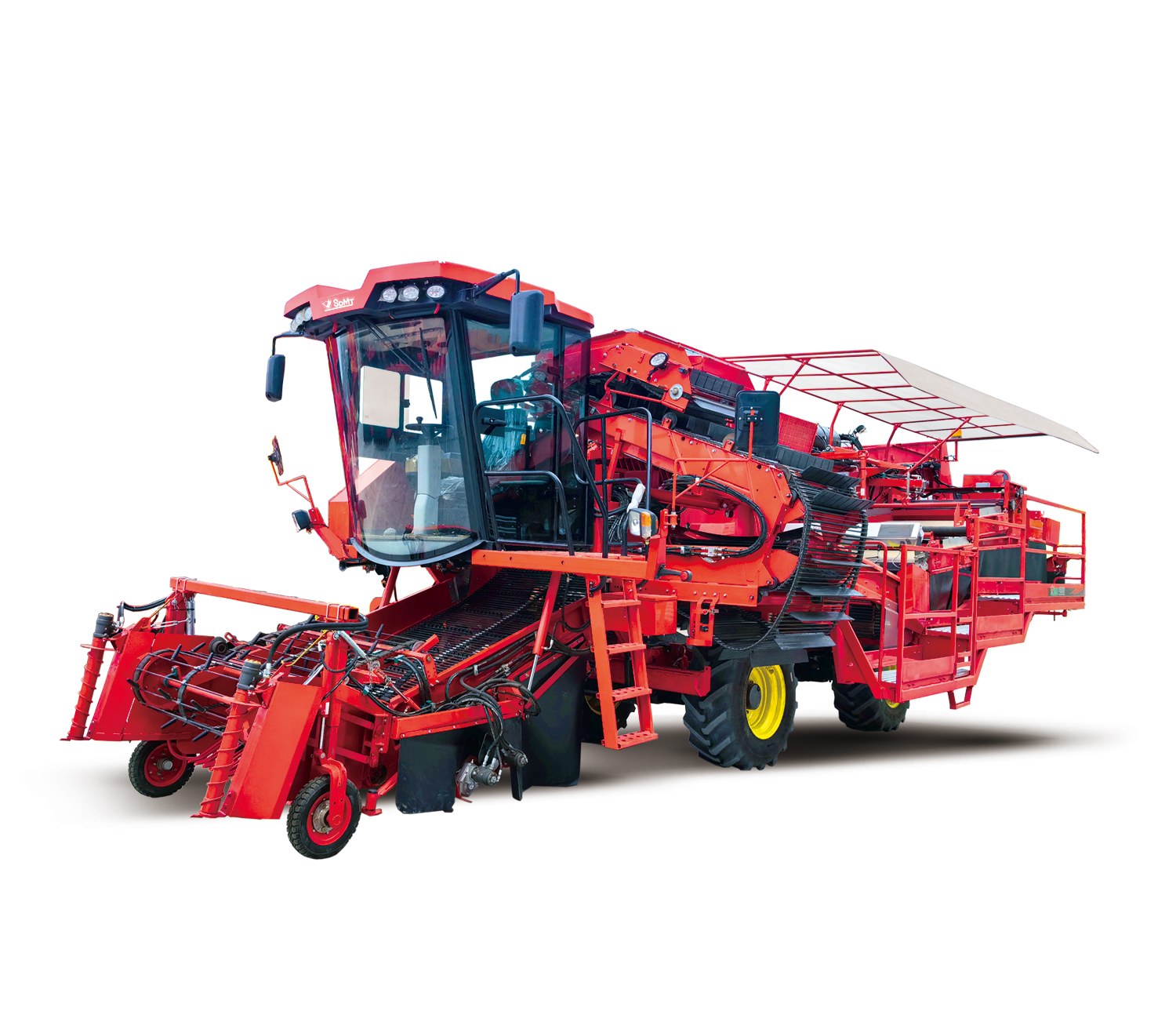

tomato harvester
Frame construction with high-strength components, 500 mm offset, automatic leveling.
Cameras and lighting in loading/unloading areas for convenience and safety.
The cabin has air conditioning, heating and a simple interface.
Cummins engine with reverse cooling for stable operation.
The main and auxiliary fuel tanks reduce refueling.
Hydraulic all-wheel drive and all-wheel steering provide traction and maneuverability.
Copying mechanism and hydraulic conveyor adjustment for accuracy and efficiency.
The vine separation mechanism with vibrating rods reduces fruit damage.
Inductive sensor increases safety.
Two-level sorting system with high productivity.
Description
The tomato harvester model 4FZ-1.5 is the first series of domestic tomato harvesting equipment independently developed and produced by our company in 2024, which made it possible to fill the gap in the domestic industry. After a series of field tests, the machine was confirmed to have a production capacity of up to 85 tons per hour, with an impurity content of only 2% and a fruit damage rate of 1.3%. The technical performance of the combine has reached the international level of similar models.
Specifications
Indicator
A unit of measurement
Meaning
Maximum performance |
t/h |
80 |
Rated power |
kW/hp |
221 / 296 |
Dimensions (Transport position) |
mm |
11510×3490×3650 |
Dimensions (Working position) |
mm |
11510×5400×6200 |
Weight |
kg |
13740 |
Fuel tank capacity (main / auxiliary) |
l |
220 / 180 |
Working width |
mm |
1500–1900 |
Type of move |
— |
Full hydraulic drive on all wheels |
Field Movement Speed (1/2 Gear) |
km/h |
0–6 / 0–9 |
Highway speed (1/2 gear) |
km/h |
0–16 / 0–27 |
Top separation mechanism |
— |
Three-component vibrator |
Number of color sorter channels |
pcs |
48 |
Wheelbase |
mm |
2750 |
Turning radius on the highway / in the field |
m |
5.3 / 4 |
Tire size (guider wheel/drive wheel) |
— |
175LR-24 / 175LR-24 |
Track (guide/drive wheel) |
mm |
1650 / 1650 |
Maximum unloading height |
mm |
4000 |
Product Quality Check
External inspection - checking the conformity of color, shape, size and surface to established standards.
Functional testing – checking the correct operation of all machine systems.
Checking labeling and instructions – checking for accuracy, readability and completeness of information.
Safety testing – verification of compliance with electrical, mechanical and environmental requirements.
![tomato harvester.jpg]( "tomato harvester.jpg")
Packaging and delivery
Each machine is securely secured in a container for safe transportation.
The process of loading and sealing the container is recorded in photographs and videos.
Cooperation with reliable shipping companies, real-time logistics tracking.
![tomato harvester.jpg]( "tomato harvester.jpg")

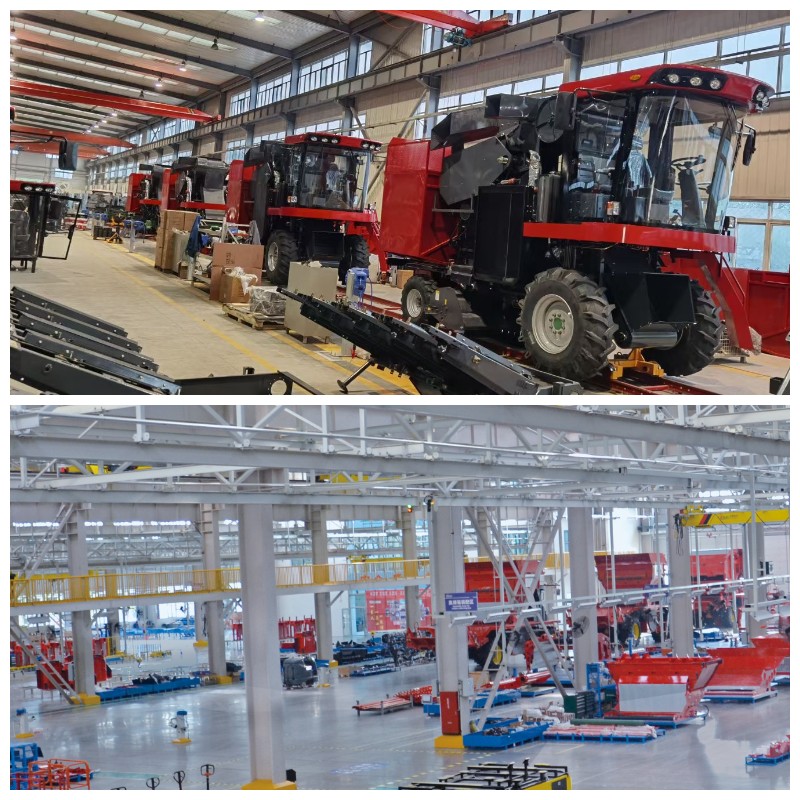

Company information
Shandong Swan Cotton Industrial Machinery Co., Ltd. is a joint-stock enterprise belonging to the Shandong Provincial Supply and Marketing Cooperative System, founded in 1946. The company integrates scientific research, precision manufacturing, sales and service, specializing in intelligent and mechanized cotton processing equipment.
The company's products are exported to more than 30 countries, and its share of the domestic market consistently occupies a leading position.
The company has four production bases and research and development centers: Jinan (Shandong), Wuzhiaqu (Xinjiang), Hailar (Inner Mongolia), and Montgomery (USA). It is a high-tech enterprise in Shandong Province, a participant in national research and development programs, and a leading innovator in the field of intelligent agricultural machinery.
Frequently Asked Questions (FAQ)
1. Are you a manufacturer or a trading company?
— We are a manufacturing company with four of our own bases in China and the USA.
2. Where is your head office located?
— In the city of Jinan, Shandong Province (China). It's a 1.5-hour high-speed train ride from Beijing. Welcome to visit!
3. How do you control quality?
— We were the first in the industry to achieve ISO9001 certification and received international CNACR, RAB, and RVA certificates, recognized in more than 20 countries worldwide.
4. Payment terms:
— By agreement. T/T in advance or irrevocable letter of credit (LC) are possible.
5. Delivery time:
— From 20 to 50 days after receiving the advance payment or the original letter of credit.
If you have any additional questions, please contact us and we will respond as soon as possible.
