Grain Harvester 4500

Product benefits

High cleaning efficiency. The optimized cutting table ensures a clean cut and complete shredding of plant stems.
Reliable powerful chassis. Hydrostatic all-wheel drive and a 30-ton gearbox guarantee excellent cross-country capability on challenging fields.
Stable operation. Extended wheelbase and enlarged tires ensure high machine stability when working on all types of soil.
Efficient threshing and grain cleaning system. Axial threshing combined with a double "fish scale" sieve allows for clean grain with minimal losses.
Comfortable operation and easy maintenance. The ergonomic cab, axle reverse, and automatic lubrication system greatly simplify daily work and maintenance.
Durable non-deformable frame. Tongue-and-groove welding made of high-quality materials prevents cracks and extends the machine's service life.
Strict multi-stage factory quality control, low failure rate, optimally suited for large grain farms.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

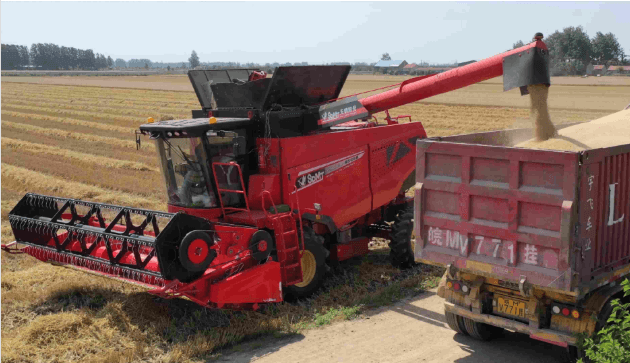

The Shandong Swan Model 4500 combine harvester is a modern self-propelled harvesting machine that performs the complete technological cycle of grain harvesting: cutting the stalks, threshing, separating the straw, cleaning out impurities, and collecting the grain harvest right in the field. The model stands out for its high productivity and reliability under intensive use, making it ideal for large grain farms.

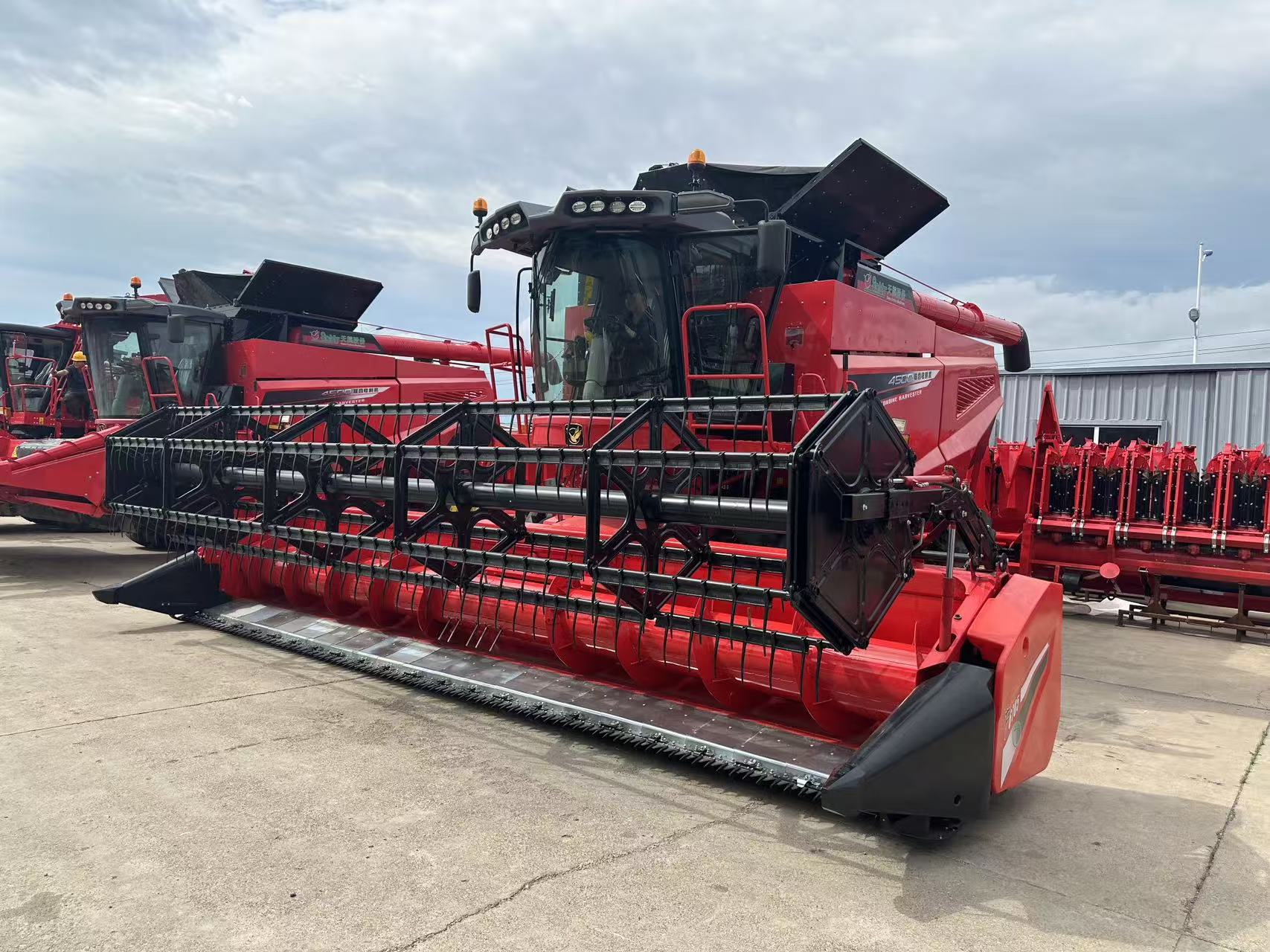

Header

Several header options are offered, selected according to the specifics of crop planting and the requirements for further straw processing after harvest.

Power unit

The six-cylinder Cummins engine with a power output of 221 kW (300 hp) provides great traction potential, ensures high harvesting speeds, optimal gear ratios, and helps reduce specific fuel consumption.

Frame construction

The frame is made of high-quality materials also used in the production of cotton harvesters. A tongue-and-groove welding technology is used, which prevents deformation and cracking, ensuring a long service life for the structure.

Front and rear axle

The front axle is equipped with an electronic gearbox and an integrated drive unit rated for loads up to 30 tons. The rear axle is implemented using a full-drive “one pump — three motors” scheme. Each hydraulic motor operates independently, significantly improving the harvester’s cross-country capability and stability in fields with difficult conditions.

Operator cab

The comfortable, ergonomic cab is equipped with air conditioning, a suspended operator seat, and an integrated control panel. All elements are designed for easy operation and comfortable work during long shifts.

Specifications

Parameter group	Parameter name	Unit of measurement	Meaning
Main operating parameters	Mass feed performance	kg/s	12
	Rated motor power	kW (hp)	221 (300)
	Working performance	ha/h	about 2
	Grain tank volume	m³	9
	Grain unloading height	mm	5100
Dimensions and weight	Total machine weight	kg	15000
	Overall dimensions (L × W × H)	mm	9500 × 6100 × 4300
Running gear	Chassis type	—	Hydraulic all-wheel drive

Transportation and quality control

Due to the large-sized structure, special packaging and loading schemes are used for cross-border deliveries, completely eliminating damage to the equipment during transportation.

Each combine harvester undergoes a comprehensive set of factory tests:

Functional tests: verification of the operability of all components under practical operating conditions;
Visual inspection: checking appearance, dimensions, and surface quality;
Safety inspection: compliance with electrical, mechanical, and chemical safety standards;
Checking the marking and operational documentation for accuracy and completeness.

About the manufacturer

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. was founded in 1946 and is a leading Chinese manufacturer of agricultural machinery. The enterprise is engaged in scientific research, design, production, and after-sales service, providing comprehensive solutions for the agricultural sector. Swan products are exported to more than 30 countries worldwide. The company has four production and engineering bases and is classified as a high-tech enterprise in China.
