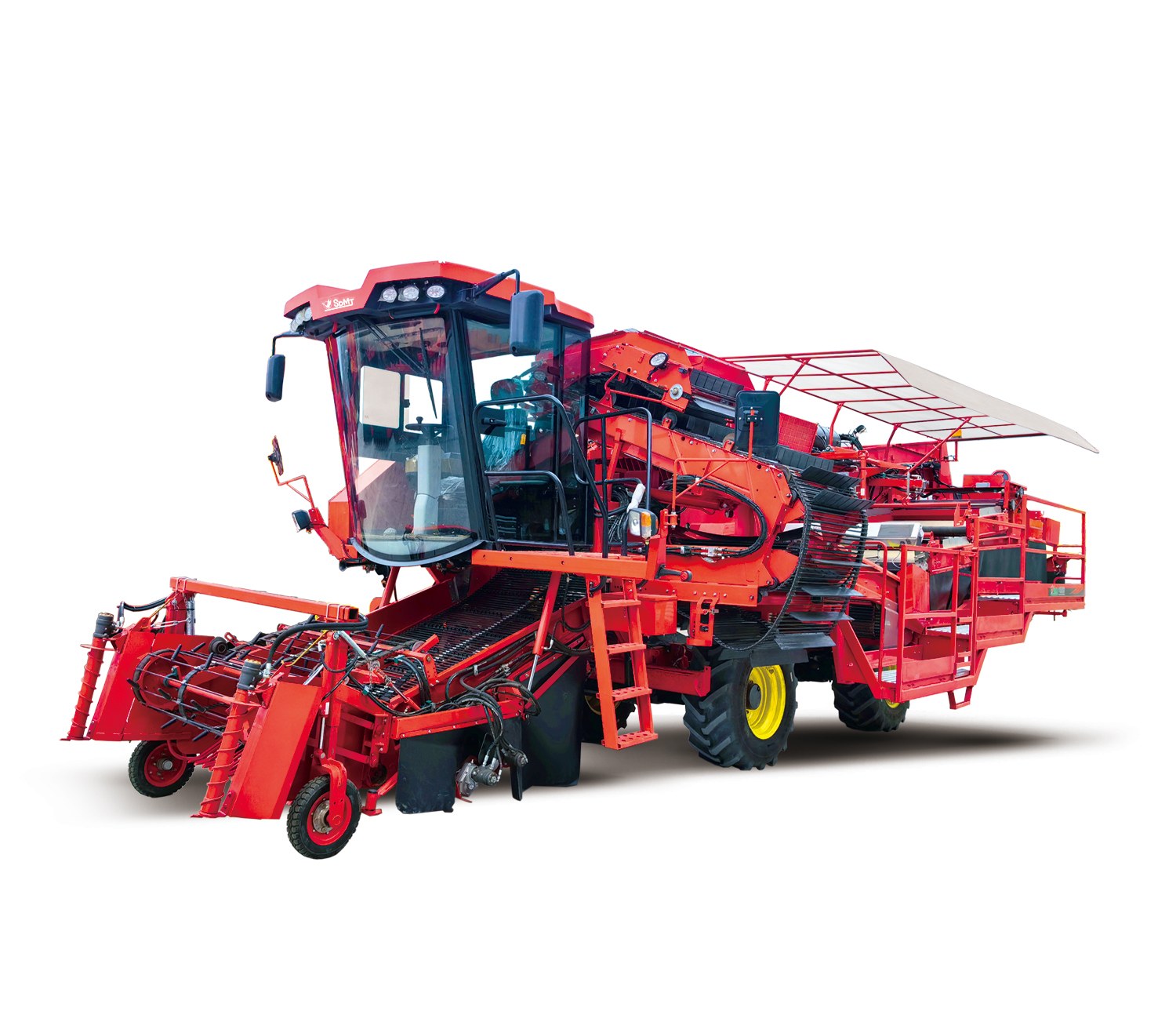

Tomato harvesting machine
1. Frame structure made of high-strength materials; lateral movement up to 500 mm, automatic leveling - excellent stability.
2. Cameras and lighting in transportation and unloading areas – convenience and safety during work and maintenance.

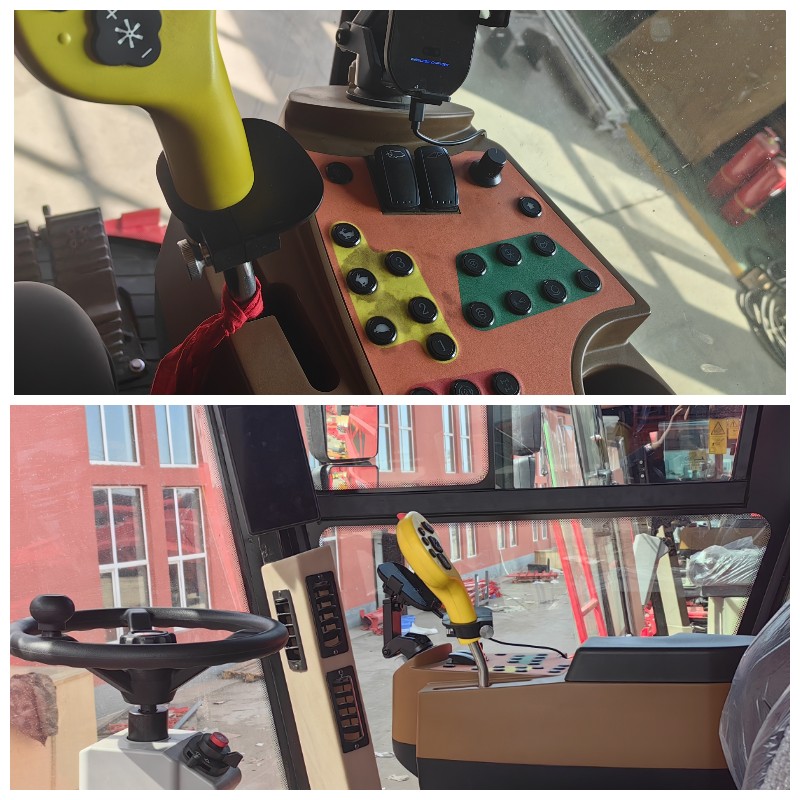

3. Comfortable cabin with climate control, intuitive interface, clear zoning - easy to operate.
4. Powerful Cummins engine + active reverse-blow cooling system - efficient heat dissipation and stable operation.
5. Dual fuel system (main + auxiliary tank) - less refueling, higher performance.
6.Full hydraulic drive + 4-wheel steering - excellent traction and maneuverability in all conditions.
7. Hydro-profiling mechanism - the cutting table closely follows the terrain, reducing soil absorption and facilitating control.
8. Hydraulically adjustable conveyor; rollers with anti-tangling design - higher efficiency and service life.
9. Optimized fruit separation mechanism: vibrating rods made of new wear-resistant materials - less damage, smoothness, easy maintenance.
10. Presence sensor on the separator cover - blocks start when the cover is open, increased safety.
11. Two-color optical sorting: new generation software, response frequency up to 35 Hz, conveyor speed up to 70 m/min - high accuracy and productivity.
Description
The 4FZ-1.5 tomato harvester is the first batch of domestically produced tomato harvesting equipment, fully developed and manufactured by our company in 2024. This model fills a previously existing technological gap in the domestic industry.

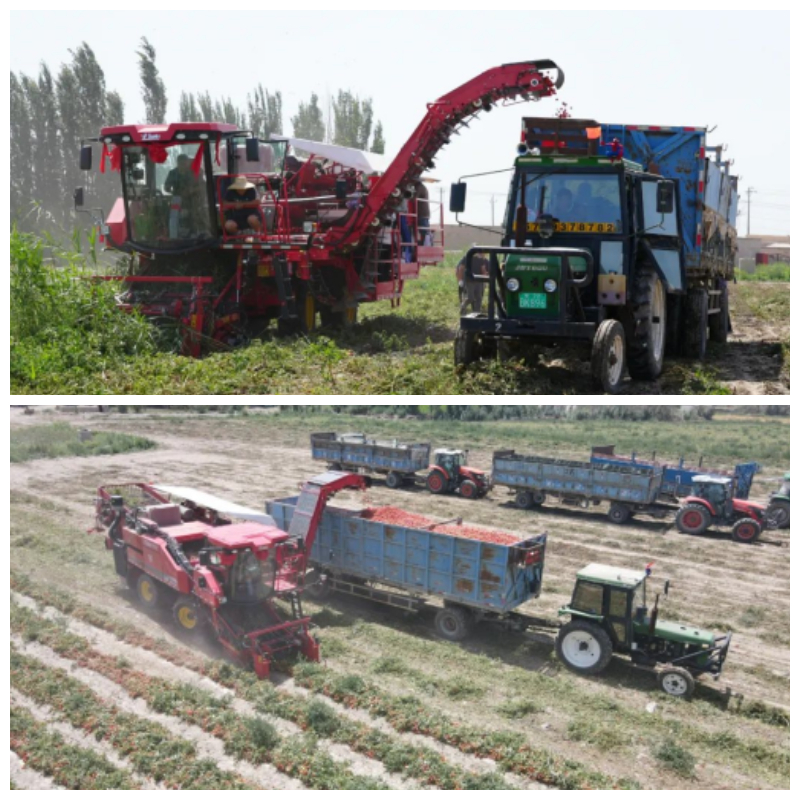

Based on multiple field tests, the equipment demonstrates a throughput of up to 85 tons per hour with an impurity level of no more than 2% and a fruit crushing ratio of 1.3%. Its technical specifications are in line with internationally advanced standards for similar products.
Specifications
| Parameter | Unit of measure | Meaning |
Maximum performance |
t/h |
80 |
Rated power |
kW / HP |
221 / 296 |
Overall dimensions (L×W×H) |
mm |
11 510 × 3 490 × 3 650 |
Weight |
kg |
13,740 |
Fuel tank capacity |
l |
220 |
Working width |
mm |
1500–1900 |
Travel system type |
— |
Permanent hydraulic all-wheel drive (4WD) |
Travel speed |
km/h |
0–6 |
The mechanism of fruit separation from the vine |
— |
Three-component vibrator |
Number of color sorting channels |
pcs. |
48 |
Wheelbase |
mm |
2 750 |
Turning radius |
m |
K, A |
Tire type |
— |
175LR-24 |
Track |
mm |
1 650 |
Maximum unloading height |
mm |
4 000 |

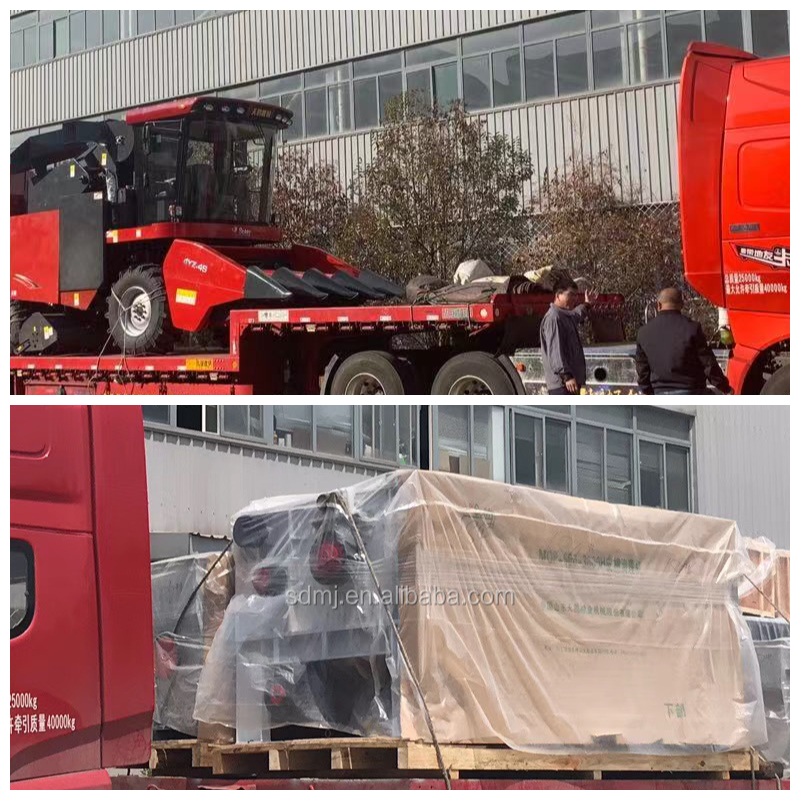

Packaging and Delivery
Acceptance of products
Visual inspection: verification of the product's appearance against requirements (color, shape, dimensions, surface quality, etc.). This is performed visually or using auxiliary instruments (microscopes, measuring devices).
Functional testing: checking the correct operation of all equipment functions through commissioning tests or using specialized control and measuring equipment.
Checking labeling and operational documentation: compliance of labels and manuals with accuracy, clarity, completeness and requirements of current regulations and standards.
Safety tests: confirmation of product compliance with electrical, mechanical and chemical safety requirements in accordance with international and national standards.
![Tomato harvester.jpg]( "Tomato harvester.jpg")

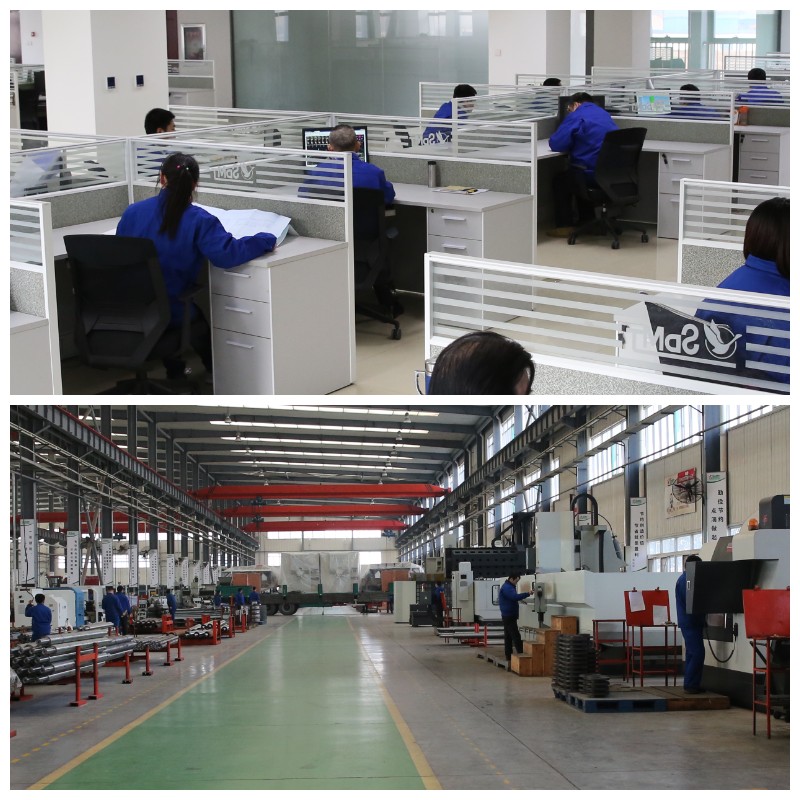

About the company
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a public joint-stock company that is part of the Shandong Province Supply and Marketing Cooperative system. The history of the enterprise dates back to 1946. Today, the company integrates scientific research, precision manufacturing, global marketing and capital management, specializing in complete turnkey solutions for mechanized, digital and smart cotton processing.
Products are exported to more than 30 countries. In the domestic market of China, the company has held a leading position in terms of sales volume for many years in a row. The service and distribution network covers all major cotton regions of the planet.
Based on the cotton harvesting machinery industry as its core business, the company actively promotes the modernization and digital transformation of the cotton industry, creates “next-generation smart factories” and strives to become the world's No. 1 brand in the field of cotton machinery. At the same time, Shandong Swan is confidently developing the direction of intelligent agricultural machinery and entering the market of high-tech industrial equipment.
