tomato harvester
1. Frame construction made of high-strength materials; lateral displacement up to 500 mm is allowed; automatic leveling – high stability.
2. Cameras and lighting in the transportation and unloading areas – convenience and safety during operation and maintenance.
3. Enhanced comfort cabin: climate control, ergonomic and intuitive interface – easy to operate.
4. Powerful Cummins engine + active cooling system with forced reverse blowing - stable operation in any conditions.
5. Dual fuel system (main + additional tank) - less downtime, higher productivity.
6.Full hydraulic drive + 4-wheel steering - excellent traction and maneuverability.
7.Hydraulic profiling mechanism - the cutting unit precisely follows the terrain, minimizing soil capture.
8. Hydraulically adjustable conveyor; support rollers - special design to prevent plant residue from getting wrapped around.
9. Optimized fruit separation mechanism: vibrating rods made of new wear-resistant materials – less damage, smooth operation, easy maintenance.
10.Induction sensor on the separator cover - start blocking when the cover is open, increased safety.
11. Two-color optical sorting: new generation software, response frequency up to 35 Hz, conveyor speed up to 70 m/min - high accuracy and productivity.
Model description
The 4FZ-1.5 tomato harvester is the first tomato harvesting machine in China, fully developed and manufactured by our company in 2024. This model bridged the technological gap in the domestic market.
Field tests have confirmed:
Productivity - up to 85 t/h
Impurity content: ≤2%
Fruit damage - ≤1.3%

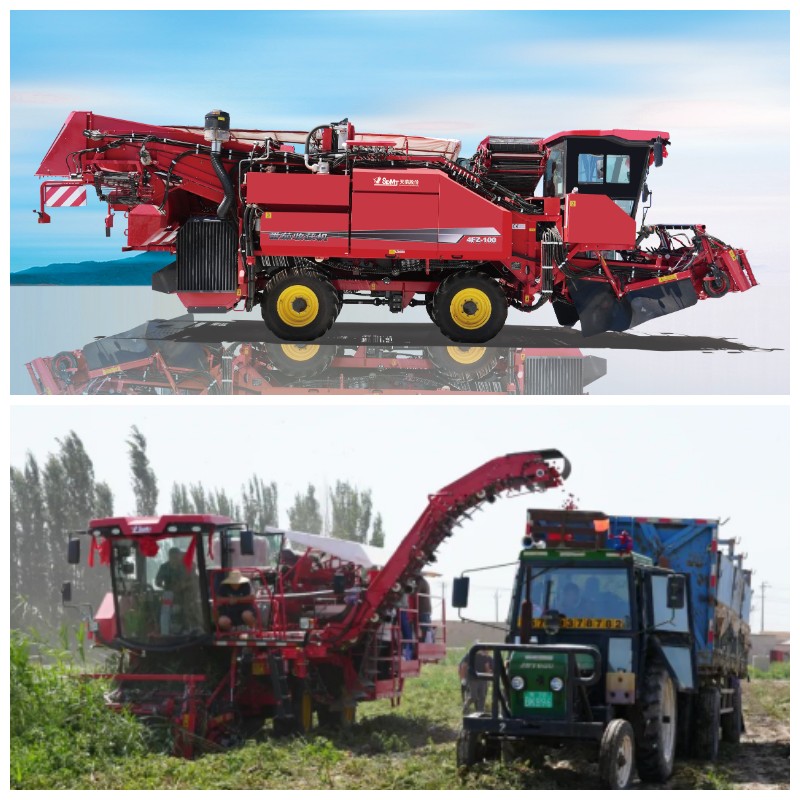

Technical parameters correspond to the world level of analogues.![tomato harvester.jpg]( "tomato harvester.jpg")
Specifications
| Parameter | Meaning |
Performance |
up to 80 t/h |
Engine power |
221 kW (296 hp) |
Dimensions |
11,510 × 3,490 × 3,650 mm |
Weight |
13,740 kg |
Fuel tanks |
220 l / 180 l |
Working width |
1,500–1,900 mm |
Drive |
Hydraulic full (4WD) |
Travel speed |
0–6 / 0–9 km/h |
Fruit separator |
Three-component vibrator |
Color sorting |
48 channels |
Wheelbase |
2,750 mm |
Turning radius |
5.3 m / 4.0 m |
Tires |
175LR-24 (all wheels) |
Track |
1,650 mm |
Unloading height |
up to 4,000 mm |
Quality control before shipment
External inspection – checking the color, shape, dimensions and quality of the coatings.
Functional testing – launch and testing of all systems under load.
Documentation – compliance of markings and manuals with Russian/EAEU/international standards.
Safety - tested for electrical, mechanical and chemical parameters.
About the company
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a publicly traded company (founded in 1946) affiliated with the Shandong Provincial Supply Cooperative.
We specialize in comprehensive solutions for mechanized, digital, and intelligent cotton processing, and are also developing smart agricultural machinery.
✅ Export to 30+ countries
✅ Leader in the Chinese market by sales volume
✅ Service network – in all key cotton regions of the world
Today, Shandong Swan is a national innovation leader with four production centers (Jinan, Xinjiang, Inner Mongolia, and the United States) and a participant in key government programs for technological import substitution and digitalization of the agro-industrial complex.
Frequently Asked Questions
Q1: Are you a manufacturer or a reseller?
A: We are a factory. We have four of our own production facilities: in China (Jinan, Xinjiang, VMR) and the USA (Montgomery).
Q2: Where is your headquarters? How can I get there?
A: Jinan, Shandong Province.
— From Beijing - 1.5 hours by high-speed train.
— From Guangzhou — ~2 hours by plane.
We invite you to a tour and demonstration of the equipment!
Q3: How is quality ensured?
A: We were the first in the industry to receive ISO 9001 and international certifications from CNACR (China), RAB (USA), and RVA (Netherlands). Our system is recognized in 20 countries.
Q4: Payment terms?
A: T/T (prepayment) or irrevocable letter of credit (L/C).
Q5: Delivery time?
A: 20-50 days after receiving deposit or original L/C.
Have questions? Contact us – we'll respond within 24 hours!
