round baler

Product benefits

High cleaning performance. The dual forced-feed press roller increases the mass feed volume and enhances the overall efficiency of plant mass pickup.
Quick clog removal system. When a clog occurs, the lower hopper opens via the control terminal for rapid blockage removal without disassembling components.
Dual bale tying system. Supports tying with both twine and netting; bale density is adjustable from the control panel.
Excellent maneuverability and terrain adaptation. Improved gauge wheels allow the pickup to follow field irregularities, ensuring stable operation on various terrain types.
Low maintenance costs. Inline assembly with step-by-step quality control at each production stage reduces breakdown frequency and service needs.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

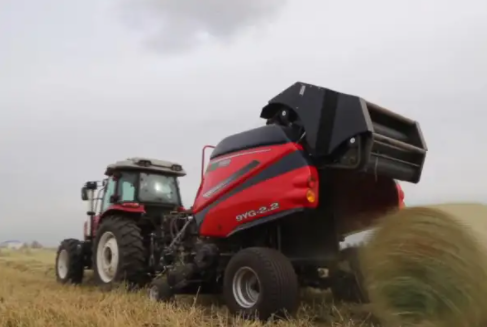

A round baler is specialized agricultural equipment designed for picking up and pressing grass, hay, straw, and silage into dense round bales. The construction includes a rotating pressing mechanism and a feeding system that collects and compacts the plant material into round rolls.

The finished round bale has high density, a dense outer layer, and a looser inner part. This structure provides moisture protection and thermal insulation on the outside while maintaining good internal ventilation, creating optimal conditions for long-term storage of the harvested forage mass.

Main components and features

The pick-up mechanism with spring tines reliably gathers the cut material from the field surface.
Bale tying with twine or netting is supported, and the bale density is adjustable by the operator via the control terminal.
The remote opening function of the lower hopper allows for quick clearing of blockages without stopping the entire process cycle.
The copying wheels follow the field's terrain, eliminating gaps during pickup on uneven sections.

Specifications

Parameter group	Parameter name	Unit of measurement	Meaning
General parameters	Required tractor power	kW	≥80
	Pickup design	—	Spring tooth
	Total machine weight	kg	4200
	Overall dimensions (L × W × H)	mm	4200 × 2960 × 2400
	PTO rotation speed	rpm	540–1000
Pickup and pressing chamber	Pick chamber width	mm	2200
	Baling chamber diameter	mm	1200
	Baling chamber length	mm	1400
	Number of rows of spring teeth	—	5
	Distance between spring tines	mm	70
	Number of knives	pcs.	12
	Theoretical cutting length of the material	mm	65
Working performance	Working speed	km/h	2–6
	Weight of finished roll (straw)	kg	≥350
	Weight of finished roll (silage)	kg	≥500

Transportation and quality control

For international shipment, a special container transport solution has been implemented:

Each machine is securely fastened and reinforced inside the container for safe delivery to the destination port.
All stages of loading and container sealing are documented with photo and video materials, ensuring full process control.
Transportation is carried out through verified shipping companies, with key delivery statuses updated in real time.

Each baler undergoes a comprehensive set of factory tests:

Visual inspection: checking appearance, geometric dimensions, and surface quality using measuring tools.
Functional tests: verifying the operability of all components and testing performance in working modes.
Packaging inspection: checking the integrity of packaging materials and the quality of labeling.
Documentation check: verifying the accuracy and completeness of labels and the operation manual for compliance with current standards.

About the manufacturer

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. was founded in 1946 and is one of the largest Chinese manufacturers of agricultural machinery. The enterprise is engaged in scientific research and development, design, manufacturing, and after-sales service, providing comprehensive solutions for the agro-industrial complex. Its products are exported to more than 30 countries worldwide. The company has four production and technical bases and is recognized as a national high-tech enterprise in China.
