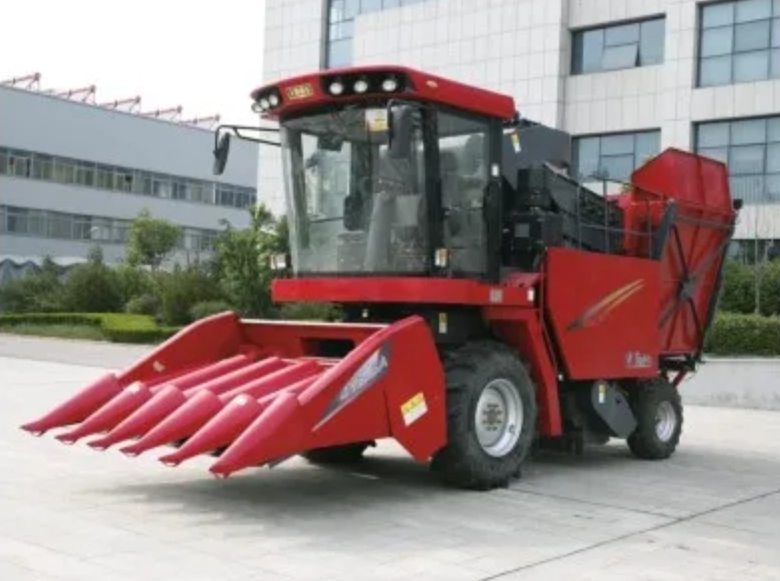

Corn harvester
The powerful 6-cylinder 220 hp engine provides high speed, performance and economical fuel consumption.
A closed axle with a 3.5 reduction gear improves reliability, traction and maneuverability on inclines.
The wide track and larger wheels lower the center of gravity and improve stability over large areas.
The cutting platform with a plate system cleanly separates the cobs, increasing productivity and durability.
The enlarged elevator ensures stable feed and eliminates blockages.
Five-drum rubber cleaner with various combinations effectively cleans cobs without damage.
The 2.8 m discharge height and 3 m³ hopper capacity reduce discharge frequency and increase productivity.
A modern, sound-insulated, air-tight, and ergonomically designed cabin ensures operator comfort.

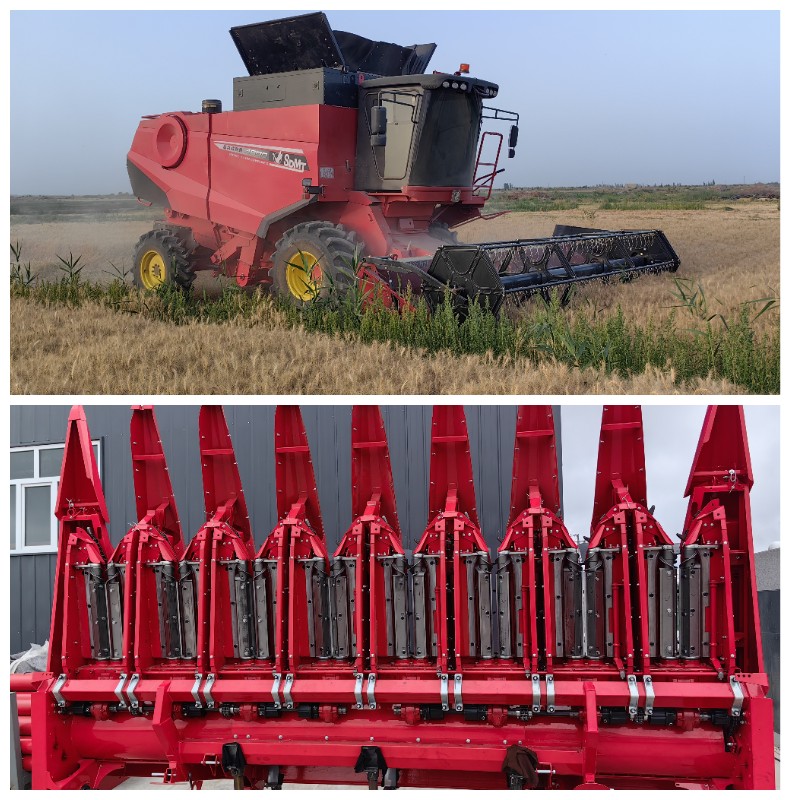

The ability to be equipped with 550, 580 and 620 headers allows you to choose the best option for your working conditions.
A corn harvester is a modern, high-performance machine designed for efficient mechanized corn harvesting. Thanks to a thoughtful design and the use of reliable components, the equipment demonstrates stable operation even in difficult field conditions. During operation, much attention is paid to the repair of corn harvesters and timely organization of maintenance of the corn harvester, which can significantly extend the service life of the machine and maintain its high productivity throughout the season.
The model is equipped with a powerful 6-cylinder engine producing 220 hp, providing high speed, excellent performance and low fuel consumption. The use of a closed axle with a 3.5-type gearbox increases the reliability of the chassis system and improves traction when driving on uneven terrain. The wide track and large tires lower the machine's center of gravity, providing stability and stability when working over large areas.
The modern cutting platform with a lamellar decob separation system ensures gentle harvesting, durability and high efficiency. The larger elevator prevents clogging at high speeds, and the five-drum rubber cleaner improves cleaning efficiency without damaging the cobs. An unloading height of up to 2.8 m and a hopper volume of 3 m³ help reduce unloading time and increase productivity.
The new-generation cab features improved sound insulation, air-tightness, and an ergonomic design, ensuring operator comfort. Depending on operating conditions, the combine can be equipped with 550, 580, or 620 headers.
Item |
Unit |
4YZ-4S(CS41) |
4YZ-4S(CS40) |
Harvesting rows |
row |
4 |
|
Application scope of row |
mm |
530-630 |
500-600 |
Power of engine
|
KW(HP) |
162(220HP) |
|
Working efficiency |
hm²/h |
0.3-1 |
|
Volume of tank |
with |
3 |
|
Height of unload |
mm |
2800 |
|
Weight |
kg |
7680 |
7650 |
Overall size(LxWxH) |
mm |
7400*2650*3500 |
7400*2560*3500 |
Type of walk |
mechanical closed |
||
