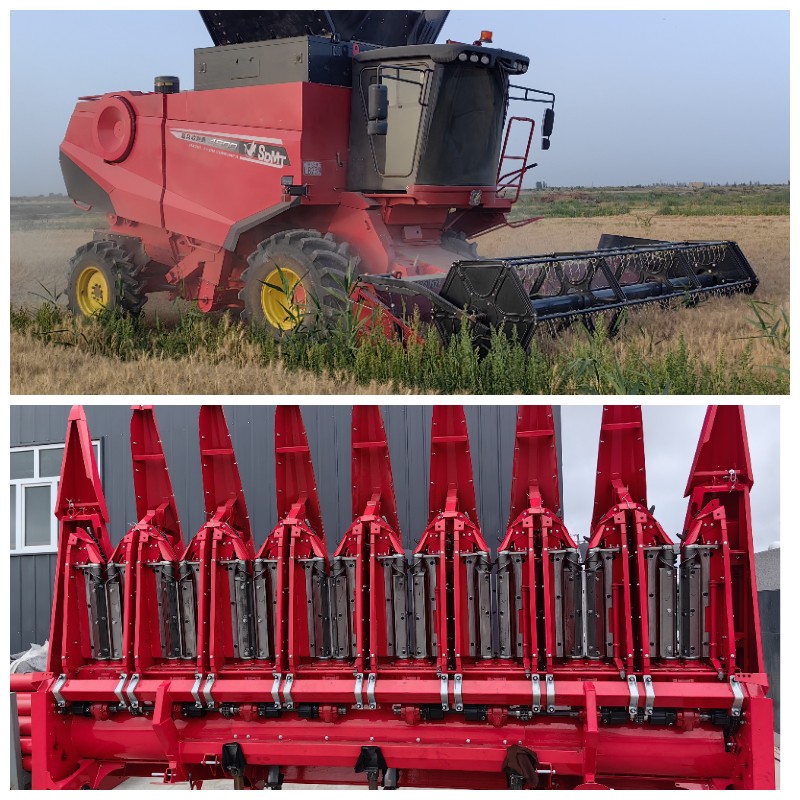

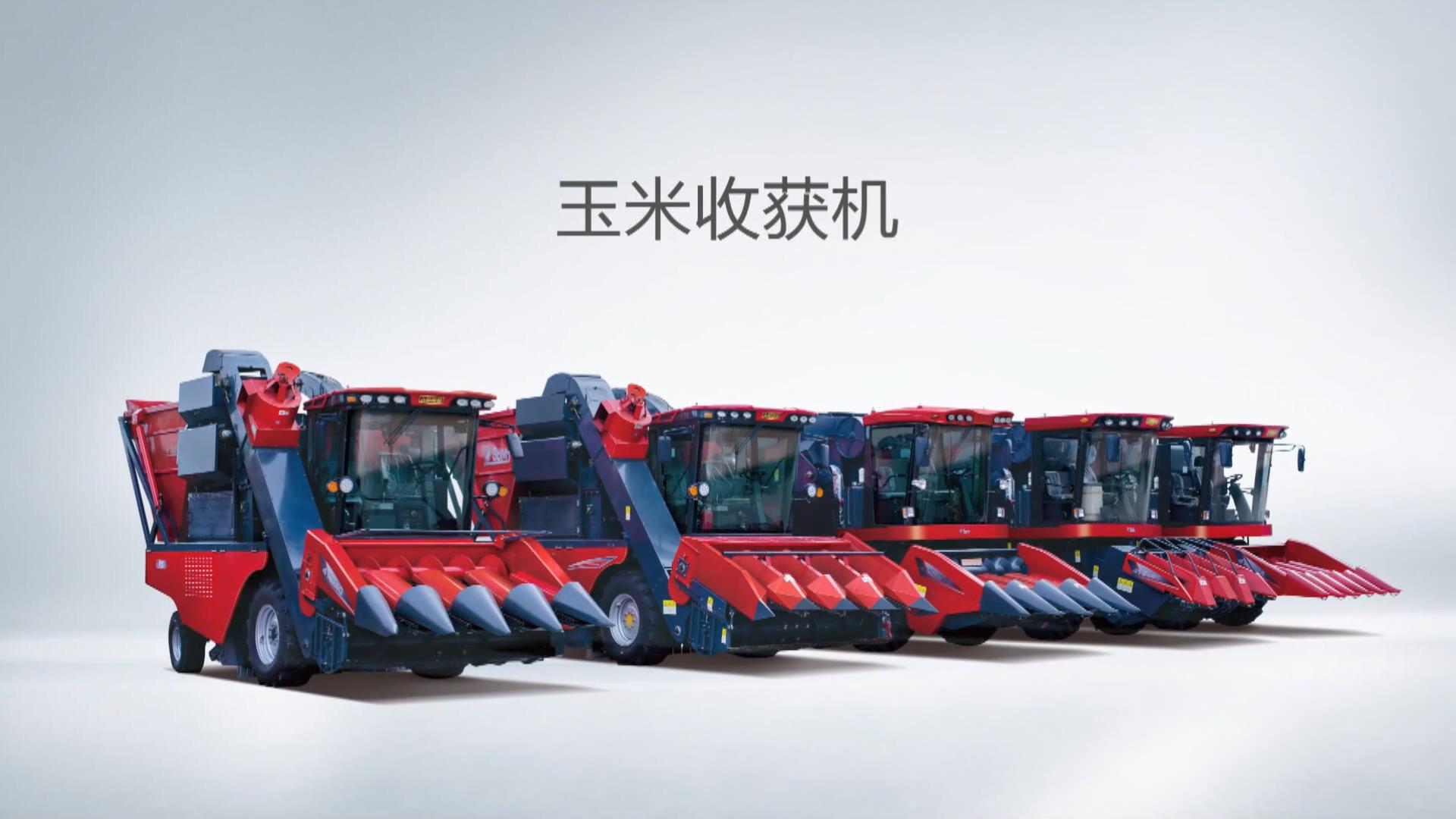

Corn harvester
6-cylinder engine, 220 hp: high operating speed, productivity and low specific fuel consumption.
Closed wheel reduction gear type 3.5: increased chassis reliability, no slippage, improved cross-country ability and the ability to overcome steep slopes.
A wider track and larger tyres with a lower centre of gravity ensure stable movement and a wider coverage area.
Optimised header with plate cob cutter: gentle corn harvesting, high efficiency and durability.
Extended elevator - completely eliminates clogging even when operating at maximum speeds.
Five groups of rubber cleaners with combined settings: gentle and effective cleaning of cobs, suitable for corn of varying maturity.
Unloading height is up to 2.8 m, hopper volume is up to 3 m³: minimum downtime for unloading, maximum productivity.
New cab: improved sealing, reduced noise levels and increased operator comfort.
Additional options: various types of 550, 580 and 620 mm wide headers – flexibility for different agricultural technologies and field conditions.
Parameter name
A unit of measurement
4YZ-4S (CS41)
4YZ-4S (CS40)
Number of rows to be removed |
row |
4 |
4 |
Row spacing range |
mm |
530–630 |
500–600 |
Engine power |
kW (hp) |
162 (220 hp) |
162 (220 hp) |
Performance |
ga/h |
0.3–1 |
0.3–1 |
Hopper volume |
m³ |
3 |
3 |
Unloading height |
mm |
2800 |
2800 |
Weight |
kg |
7680 |
7650 |
Overall dimensions (L×W×H) |
mm |
7400×2650×3500 |
7400×2560×3500 |
Travel system type |
— |
Mechanical, closed |
Mechanical, closed |
