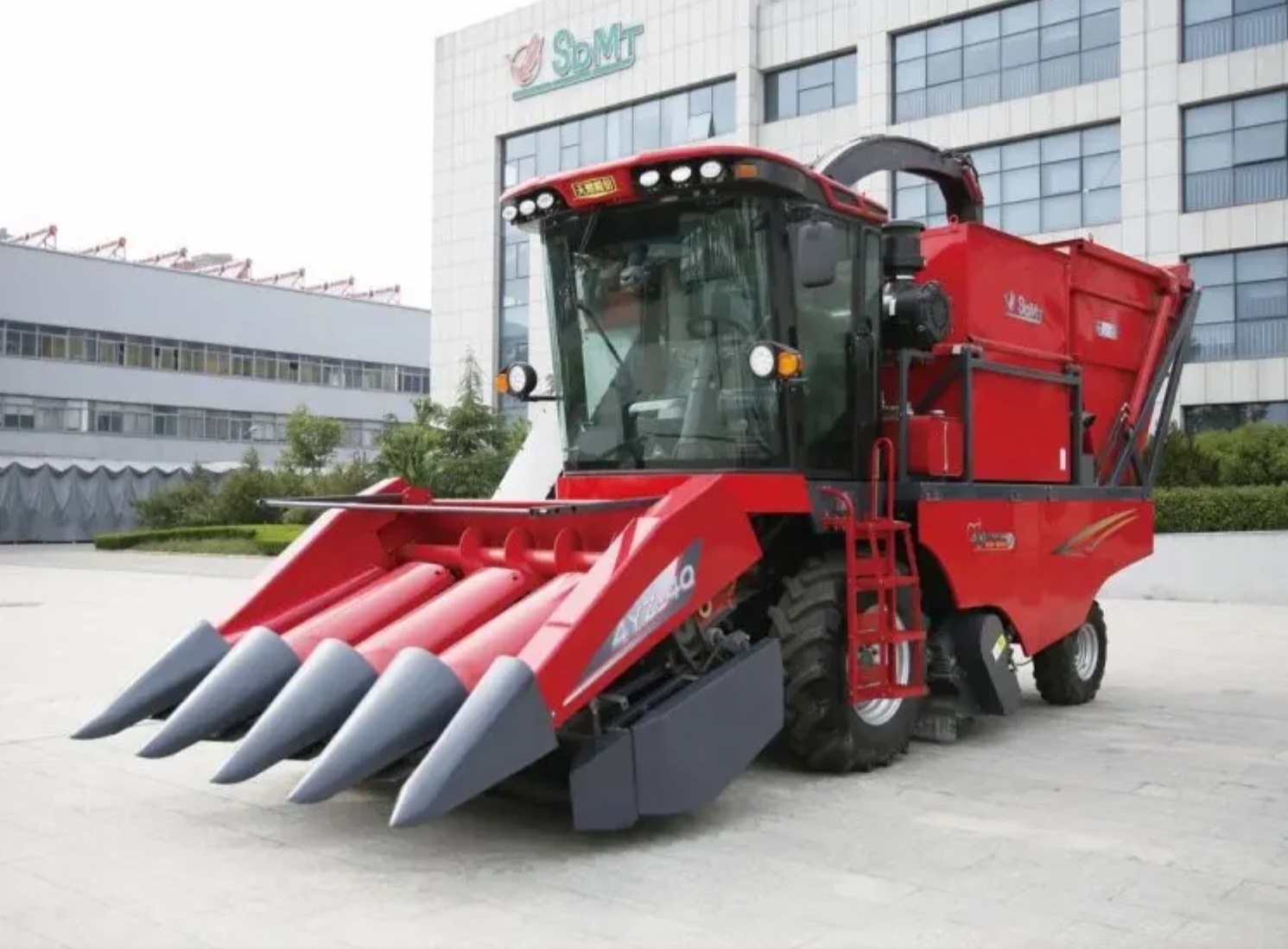

Self-propelled corn harvester
6-cylinder engine with 220 hp - high working speed, excellent performance and low fuel consumption.
Closed drive axle with hub-type reduction gear (3.5) – increased reliability of the chassis, no slippage and improved ability to overcome climbs.
Increased track and large tires with a lower center of gravity - stable movement and an expanded working area.
Optimized header with plate-type cob harvesting – gentle corn harvesting, high efficiency and durable components.
Extended elevator - completely eliminates clogging even when operating at maximum speeds.
Five groups of rubber cleaners with various setting combinations ensure effective yet gentle cob cleaning; suitable for corn of varying maturity.
Unloading height is up to 2.8 m, hopper volume is up to 3 m³ – reducing the number of stops for unloading and increasing overall productivity.
The new branded cabin offers improved sealing, reduced noise levels and increased operator comfort.
Optional headers with widths of 550, 580 and 620 mm in various types provide flexibility for different agricultural technologies and operating conditions.
? Technical Characteristics of Corn Harvester
hm²/h
Parameter (Item) |
Unit (Unit) |
4YZ-4S(CS41) |
4YZ-4S(CS40) |
Number of harvesting rows |
row |
4 |
4 |
Application scope of row |
mm |
530-630 |
500-600 |
Engine power |
kW (hp) |
162(220 hp) |
162 (220 hp) |
Working efficiency |
0.3-1 |
0.3-1 |
|
Volume of tank |
m^3 |
3 |
3 |
Height of unloading |
mm |
2800 |
2800 |
Weight |
kg |
7680 |
7650 |
Overall dimensions (L×W×H) |
mm |
7400* 2650* 3500 |
7400* 2560* 3500 |
Type of walk |
mechanical closed |
mechanical closed |
