Device for removing impurities from raw cotton
Designed with user requirements in mind, it improves the appearance of the fiber.
The rational design ensures ease of maintenance, savings and reduced energy consumption.
Minimal impact preserves the natural state of the cotton.
The enlarged working chamber and the distance between the saws ensure optimal layer density and natural separation of fiber and seeds, maintaining the shape and length of the fiber.
Large gaps between the saws reduce the short fibre content in the finished product.
The special design of the chamber makes it easy to open/close and freely adjust the removal of debris.
The patented design allows you to select the machine according to the type of cotton, and the settings are simple and convenient.
The application of hydromechanical principles improves working conditions, increases cleaning efficiency and fibre quality.
1. Introduction to the product

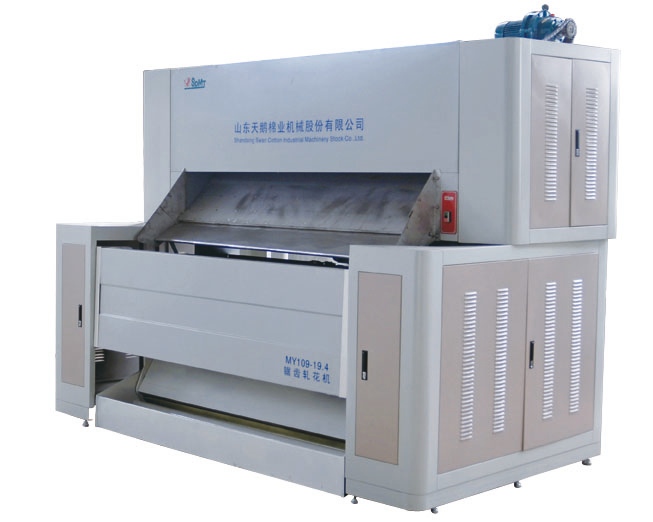

The MY109-19.2 cotton gin (saw gin) is designed to separate the fiber from the seeds and remove impurities from raw cotton.
This equipment features stable operation, high efficiency, and can meet the cotton processing needs of various cotton producing regions around the world.
2. Specifications
Indicator
A unit of measurement
Meaning
Design Capacity |
kg/h |
600–850 |
Installed power |
kW |
31.12 |
Gin quality |
Meets or exceeds national standards for similar cotton |
|
Noise level |
dB(A) |
90 |
Number of saws |
pcs |
109 |
Saw diameter |
mm |
Φ320 |
Distance between saws |
mm |
19.4 |
Brush cylinder diameter |
mm |
Φ380 |
Overall dimensions (W×D×H) |
mm |
1708×3090×2284 |
Machine weight |
kg |
3000 |
3. Packaging and delivery
The company offers customized packaging methods according to customer requirements.

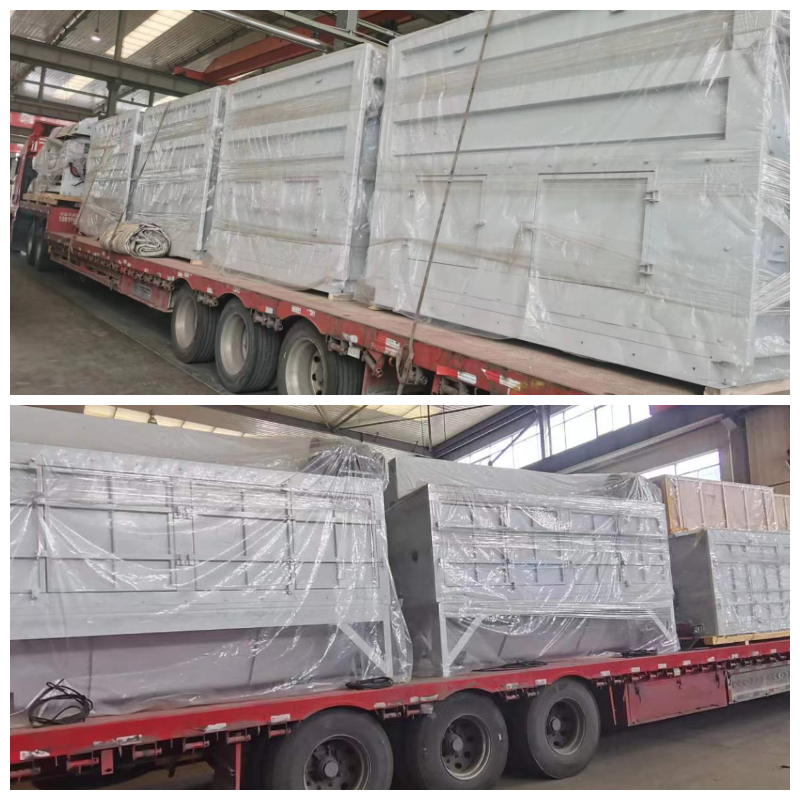

(1) Each machine is securely fixed and secured in the container to ensure safe delivery to the destination port.
(2) The entire process of loading and sealing the container is recorded on photo or video, which makes the process transparent and controllable.
(3) Cooperation with reliable shipping companies allows us to ensure prompt delivery status updates at key stages.
4. Product quality control
Before shipping, each machine undergoes rigorous comprehensive testing, including:
(1) Visual inspection: checking the appearance including color, shape, size and surface quality (visually or using measuring instruments).
(2) Functional testing: checking the correct operation of the equipment by means of a trial run or using specialized test equipment.
(3) Safety testing: confirmation of compliance with electrical, mechanical and chemical safety requirements.
(4) Packaging inspection: assessing the integrity of the packaging, the legibility of the markings and the compliance of the packaging materials with the requirements, which ensures the safety of the equipment during transportation and storage.
