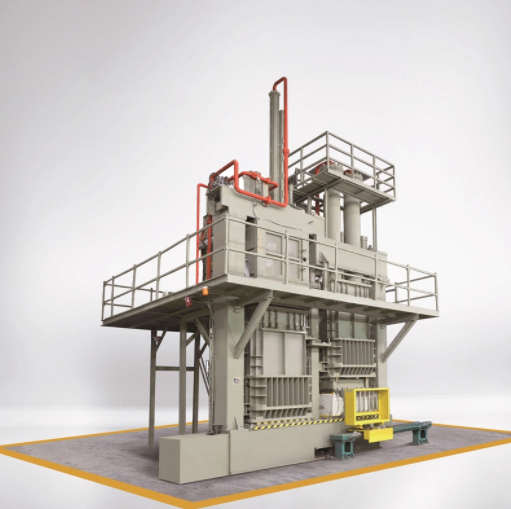

High-performance hydraulic press for pressing and packaging cotton fiber

Product benefits

Modular rigid construction, easy installation and stable operationThe equipment features a well-designed modular construction with pin connections, which ensures enhanced rigidity of the entire frame. The design is exceptionally reliable, simple and quick to install, and guarantees long-term stable, uninterrupted operation without failures.
High-performance chamber that eliminates fiber deformation and lossThe one-piece cast cotton chamber of high performance prevents expansion and deformation under intensive pressing. A special suction housing completely prevents loose fiber from scattering during operation, eliminating raw material loss and contamination of the production area.
Patented durable hook system with a low failure rateThe equipment is equipped with a proprietary patented weighted hook system. This design features a minimal number of operational failures, high wear resistance, and a long service life, reducing repair and maintenance costs.
Safe hydraulic chamber lifting systemStep-by-step hydraulic control of the working chamber lift with an automatic locking function smoothly regulates work processes. This significantly reduces mechanical shocks during equipment operation, enhances overall operational safety, and eliminates emergency situations.
Stable American-made hydraulic system + precise PLC controlThe hydraulic system is equipped with recirculation cooling and high-quality Parker (USA) brand components, ensuring stable operation under prolonged heavy loads. The intelligent PLC system provides precise automatic control, self-diagnosis of faults, and guarantees the formation of bales with strictly uniform weight.
High performance and cost efficiencyThe equipment has a wide performance range, allowing rapid compaction of loose cotton fibers into dense bales, significantly reducing raw material volume, saving storage space, and simplifying logistics and transportation of finished products.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

Product Introduction

The hydraulic fiber press is a specialized industrial equipment designed for pressing and hermetically packaging cotton fiber. Its main task is to compress loose, raw, and cleaned cotton fiber into standard compact bales, optimizing storage, loading, and international transportation conditions for cotton.

The press is developed with consideration of the actual production needs of modern cotton ginning enterprises. The equipment demonstrates stable, high-efficiency operation, fully complying with domestic and international standards. It is actively used in key cotton-producing regions worldwide: Xinjiang (China), Brazil, Central Asian countries, and other nations.

Specifications

Basic parameters	Meaning
Performance	20 bales/h (4540 kg), 25 bales/h (5675 kg), 30 bales/h (6810 kg), 40 bales/h (9080 kg)
Nominal working pressure	4000 kN
Standard bale size	1400 × 530 × 700 mm
Finished bale weight	227 ± 10 kg
Baling height	485–508 mm
Installed power	85 kW / 115 kW / 123 kW / 153 kW
Machine weight	45000 kg

Scope of application

The equipment is designed for operation at cotton ginning and cotton processing plants of any scale. It is used for final compaction and packaging of cleaned cotton fiber, preparing standard bales for warehouse storage, wholesale sale, and international transportation. Adapted for operation in various climatic and production conditions of the main cotton-producing countries of the world.

Product Quality Inspection

Each unit of equipment undergoes strict comprehensive factory inspection before shipment, including four main stages:

1.Visual inspection: Visual inspection of appearance, geometric dimensions, surface quality, and equipment completeness using both visual checks and professional measuring instruments.

2.Functional tests: Trial runs and comprehensive testing of all working functions, confirming that performance and technical specifications match the declared parameters.

3.Checking markings and documentation: Verification of the accuracy, completeness, and compliance of equipment labeling and operating instructions with current standards and regulations.

4.Safety tests: Comprehensive inspection of electrical, mechanical, and chemical safety of the equipment to guarantee safe long-term operation.

Packaging and delivery

We ensure complete safety of the equipment during transportation: all parts and assemblies of the machine are securely fixed and reinforced in transport containers, eliminating any damage during delivery to the port of destination.

The entire process of loading, packing, and sealing containers is documented with photo and video materials, ensuring full transparency and control of logistics operations. We cooperate with verified international shipping companies and provide clients with real-time updates on all key delivery stages.

Manufacturer information

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a leading Chinese manufacturer of professional equipment for cotton harvesting, cleaning, and processing. Founded in 1946, the company is part of the Supply and Marketing Cooperative Union of Shandong Province.

The enterprise integrates scientific research, engineering design, mass production, and after-sales service, providing comprehensive intelligent solutions for mechanized cotton processing. The company's products are exported to more than 30 countries worldwide and maintain a stable leading position in the domestic Chinese market.

The company holds the status of a high-tech innovative enterprise and participates in China's national science and technology programs. It operates four modern production and engineering centers in Shandong, Xinjiang, Inner Mongolia, and the United States, actively advancing the concept of “smart manufacturing” and striving for global leadership in cotton processing equipment.
