MQP series saw-type industrial machine for high-quality cotton fiber cleaning

Product benefits

Durable construction and long service lifeThe equipment is manufactured from high-strength special materials, ensuring uninterrupted and stable long-term operation. The specially reinforced combs have an extended service life and do not require frequent replacement or maintenance.
High-quality cleaning with minimal fiber damageThe optimized design of the combs and working knives guarantees thorough cleaning of cotton fiber. The equipment handles raw material gently, eliminates mechanical damage to fibers, and preserves their original quality characteristics.
Minimal raw material lossThe special design of the working knives effectively removes all types of foreign impurities from cotton, while losses of useful fiber are minimized. The optimal distribution of knives on the working drum improves cleaning uniformity and the final quality of the finished fiber.
Intelligent feeding and separation systemThe modernized raw material feeding and separation system reduces the risk of fiber damage, prevents equipment overload, and significantly lowers the likelihood of breakdowns during intensive operation.
Prevention of fiber defectsThe new improved design of the working roller ensures uniform and stable carding of cotton fiber, completely preventing the occurrence of the "white cotton" defect and other production flaws.
Wide performance range and versatilityA range of models with different performance parameters from 1000 to 3600 kg/h is suitable for small, medium, and large cotton processing facilities, easily adapting to various production volumes.
Stable operation and high quality of finished productsThe equipment demonstrates stable, uninterrupted operation over long periods of use, effectively removing short fibers and foreign impurities, significantly enhancing the commercial quality of the cleaned cotton.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

Product Introduction

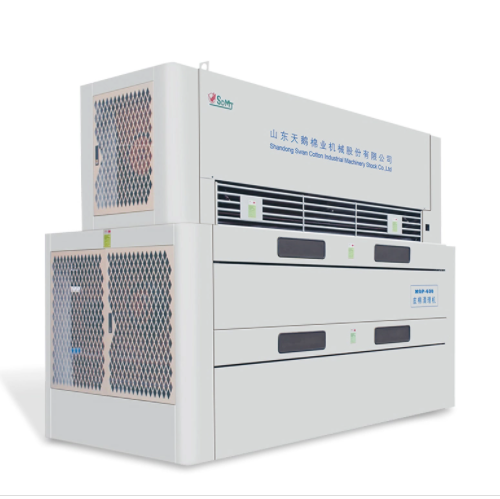

The MQP series saw-tooth cotton fiber cleaning machine is high-efficiency specialized equipment designed for the final cleaning of cotton after the ginning process. The main purpose of the device is to remove foreign impurities, dust, and low-quality short fibers from the finished cotton.

The Swan equipment features a well-thought-out design, stable operation, and high productivity. It significantly improves the overall commercial quality of the cleaned cotton fiber, enhances the competitiveness of the finished product, and optimizes production processes at cotton enterprises of any scale.

Specifications

Model	Splitting drum diameter (mm)	Capacity (kg/h)	Installed power (kW)	Overall dimensions (mm)	Weight (kg)
MQP-400x2000H	Φ400	1000–1800	19	2800×1325×2285	3400
MQP-400x2500H	Φ400	1300–2100	22.5	3300×1325×2295	4500
MQP-400x3400H	Φ400	2400–3600	37.5	4300×1510×2295	7000
MQP-600x2000H	Φ600	1200–2000	22.5	2800×1600×2615	4100
MQP-600x3000H	Φ600	2400–3600	27.5	3750×1660×2615	6600

Note:The stated performance is calculated for standard raw cotton with a moisture content of 6.5%–8.5%.

Scope of application

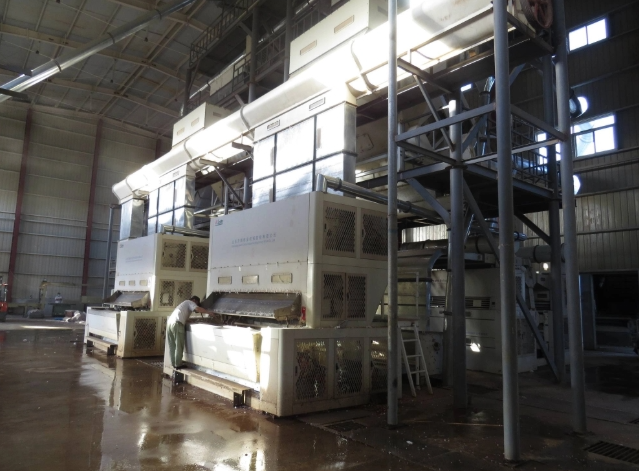

MQP series machines are widely used in cotton processing enterprises for the final cleaning of cotton fiber after the ginning process. The equipment effectively removes short low-quality fibers, dust, trash, and other foreign impurities, allowing standardization of finished cotton quality, improving its purity and commercial value. Suitable for mass processing of all common varieties of industrial cotton.

Product Quality Inspection

All products undergo multi-stage strict quality control before shipment to customers:

1.Checking materials and components: Quality control of raw materials and all components is carried out using chemical and spectral analysis and tensile testing, ensuring high strength and reliability of the structure.

2.Functional tests: Full testing of equipment operability in operating modes is performed, along with verification of actual performance and functionality against declared technical parameters.

3.Safety tests: Verification of equipment compliance with electrical, mechanical, and chemical safety requirements according to current international and national standards.

4.Checking markings and documentation: The accuracy, completeness, and clarity of equipment labeling and user manuals are checked, as well as their compliance with regulatory requirements.

Packaging and delivery

The company has a professional and experienced team for equipment packaging and loading. All machinery units are securely fastened and reinforced in shipping containers, completely eliminating mechanical damage during transportation and guaranteeing safe delivery to the destination port.

The entire process of loading, packaging, and sealing containers is documented with photo and video materials, ensuring full transparency and controllability of logistics operations. We cooperate with verified and reliable transport companies and provide clients with up-to-date information on all key delivery stages in real time.

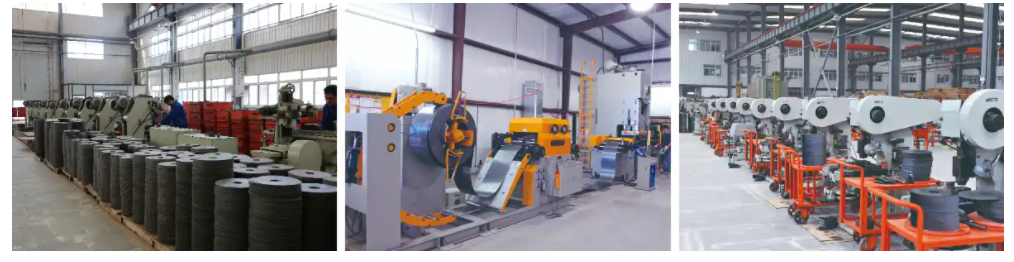

Manufacturer information

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is the largest and most reputable manufacturer of cotton harvesting and cotton ginning equipment in China. The company was founded in 1946 and is part of the Supply and Marketing Cooperative Union of Shandong Province.

The enterprise integrates scientific research, engineering design, mass production, and service, providing comprehensive intelligent solutions for mechanized cotton processing. The company's products are exported to more than 30 countries worldwide and hold a leading position in the domestic Chinese market.

The company is recognized as a high-tech enterprise and participates in China's national science and technology programs. It operates four modern production and engineering centers in Shandong, Xinjiang, Inner Mongolia, and the United States, continuously advancing the field of "smart manufacturing" and striving to become a global leader in cotton processing equipment.
