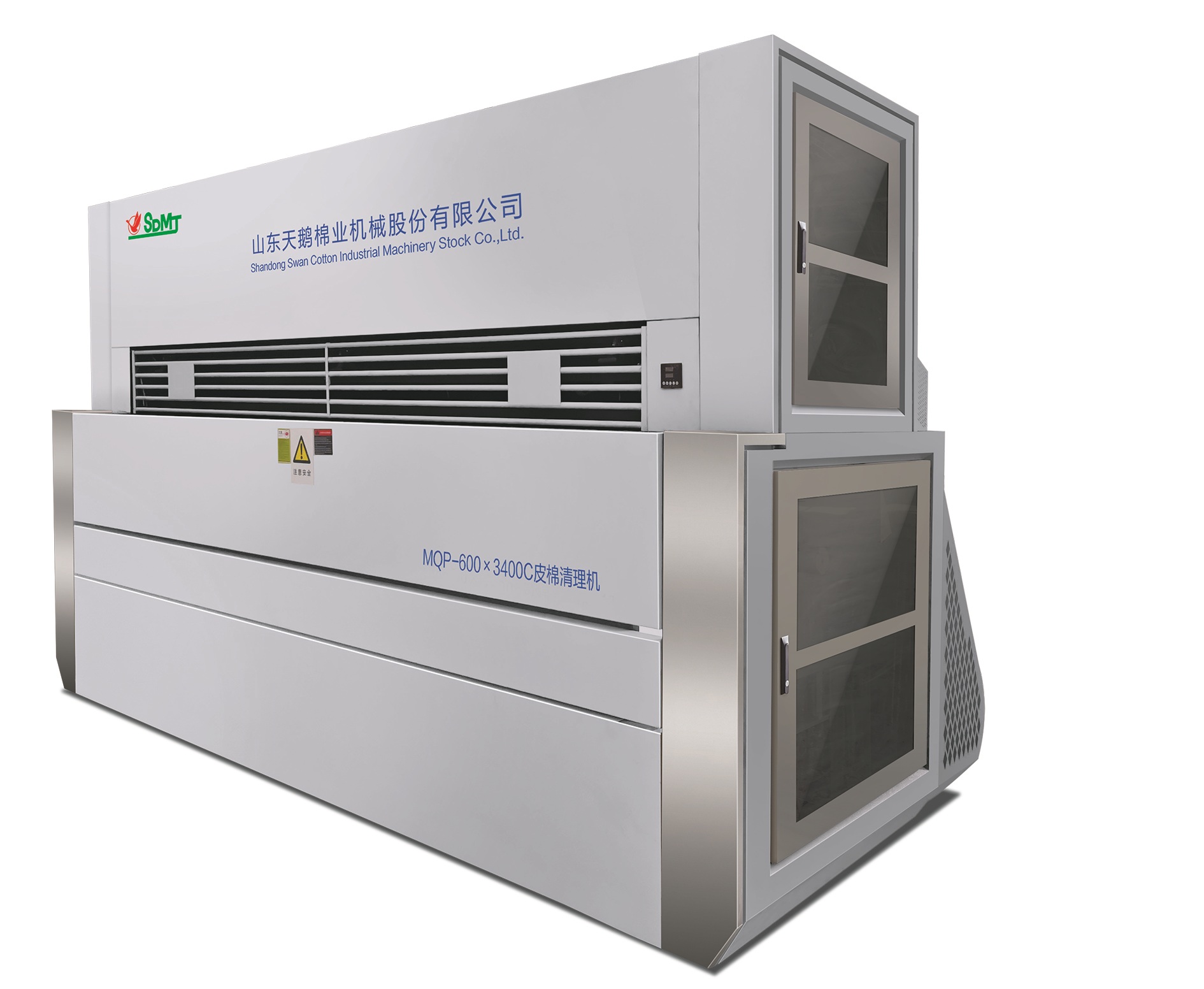

Cotton fiber cleaner
1. The machine is made of special materials, has a rational design and is characterized by stable, reliable operation.
2. Corrugated grid (comb) - special material and shape of teeth: long service life, high cleaning efficiency, minimal damage to the fiber.
3. Special impurity knife - maximum removal of impurities with minimum fiber loss.
4. Improved feed, clamping and removal mechanisms - less damage and higher reliability.
5. New feed roller with fixed entry point - stable carding, eliminates the emission of "white cotton".
6. Optimal distribution of knife discharge zones – higher cleaning efficiency and lint quality.
1. Product Description
Saw-type cotton cleaning machines are widely used to improve the overall quality of the linters after ginning by removing foreign impurities and short, less valuable fibres.
Cotton fiber cleaner manufactured by the companySwanIt is characterized by stable operation, high quality of manufacture and significantly improves the quality of the finished lint.
2. Main technical parameters
| Model | Studded shaft diameter (mm) | Estimated productivity (kg/h) | Installed capacity (kW) | Overall dimensions (L×W×H, mm) | Mass (kg) |
|---|---|---|---|---|---|
| MQP-400x2000H | Φ400 | 1000–1800 | 19 | 2800×1325×2285 | 3400 |
| MQP-400x2500H | Φ400 | 1300–2100 | 22,5 | 3300×1325×2295 | 4500 |
| MQP-400x3400H | Φ400 | 2400–3600 | 37.5 | 4300×1510×2295 | 7000 |
| MQP-600x2000H | Φ600 | 1200–2000 | 22,5 | 2800×1600×2615 | 4100 |
| MQP-600x3000H | Φ600 | 2400–3600 | 27.5 | 3750×1660×2615 | 6600 |
Note:The indicated productivity corresponds to standard raw material (seed cotton) with moisture content6.5–8.5%.
3. Packaging and delivery
We have an experienced packing and loading team, ensuring the safety and integrity of your equipment at all stages of transportation.
Each vehicle is securely fastened and reinforced inside the container for safe delivery to the destination port.
The entire process of loading and sealing the container is documented by photo and video recording—all stages are completely transparent and controllable.
We partner with trusted shipping companies; key delivery stages are tracked and updated in real time.
![Cotton fiber cleaner.jpg]( "Cotton fiber cleaner.jpg")
4. Acceptance of products
Functional testing: checking the correct operation of all equipment functions by means of a test run or using specialized control and measuring instruments.
Checking markings and operating documentation: Labels and manuals comply with requirements for accuracy, legibility, completeness and applicable regulatory standards.
Safety tests: confirmation of compliance with electrical, mechanical and chemical safety requirements.
Testing of materials and components: checking the conformity of the materials and parts used with technical specifications using methods of chemical analysis, spectral analysis, tensile testing, etc.
