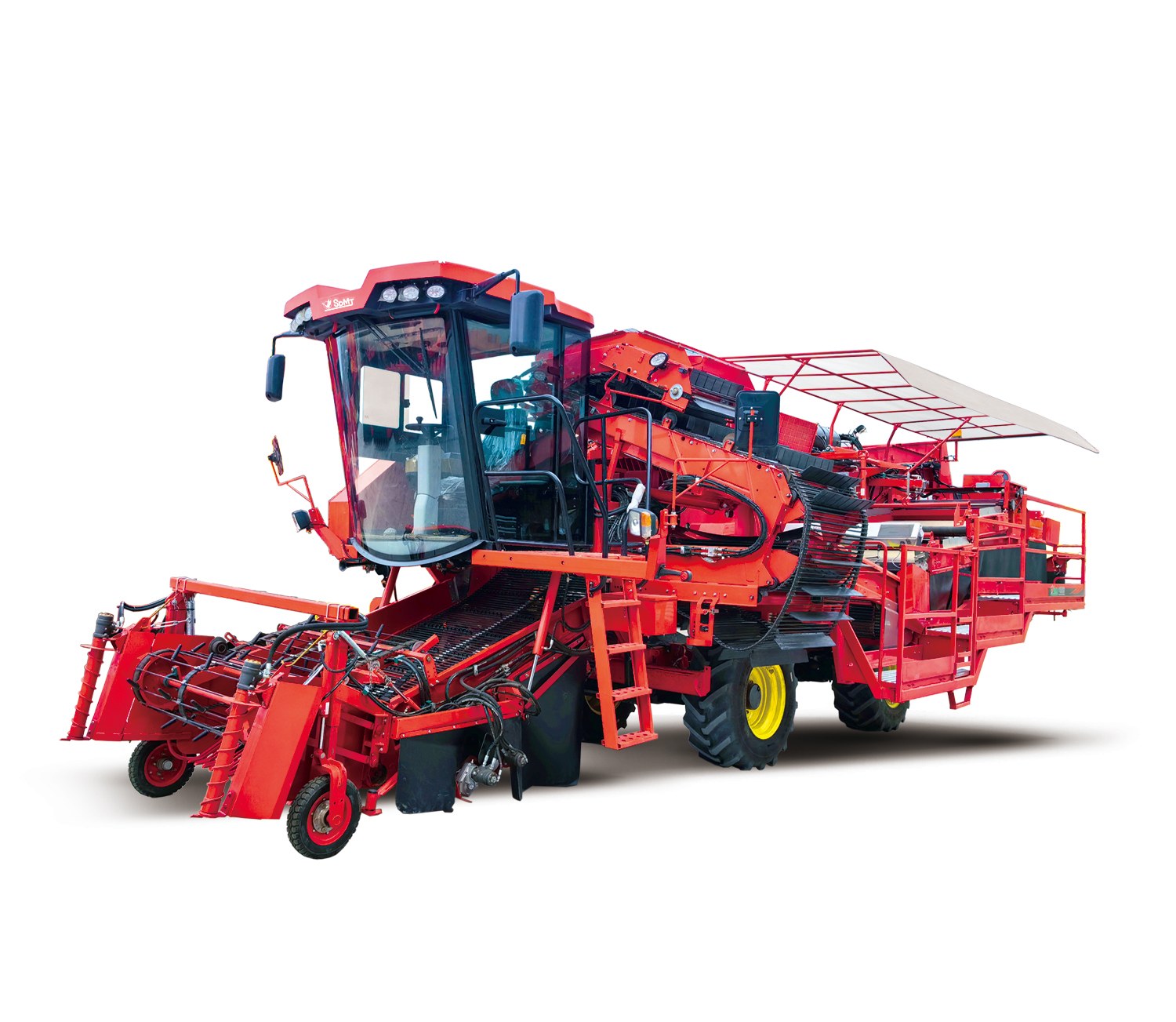

Tomato harvesting machine
Frame construction made of high-strength materials; lateral movement up to 500 mm, automatic leveling – excellent stability.
Cameras and lighting in transport and unloading areas ensure safety and convenience during operation and maintenance.
A premium cabin with climate control, an intuitive interface, and clear zoning ensures maximum operator comfort.
Powerful Cummins engine + active reverse-blow cooling system – efficient heat dissipation and stable operation in all conditions.
Dual fuel system (main + auxiliary tank) - fewer refuelings, higher productivity.
Full hydraulic drive + 4-wheel steering - excellent traction and maneuverability in all modes.
Hydraulic profiling mechanism – the header precisely follows the contours of the ground, minimizing soil capture and facilitating control.
Hydraulically adjustable conveyor; anti-tangle support rollers – increased efficiency and component life.
Optimized fruit separation mechanism: vibrating rods made of new wear-resistant materials – less damage, smooth operation, easy maintenance.
The indicator sensor on the separator cover prevents the start when the cover is open, increasing safety.
Two-color optical sorting with modern software: response frequency up to 35 Hz, conveyor speed up to 70 m/min – high accuracy and productivity.

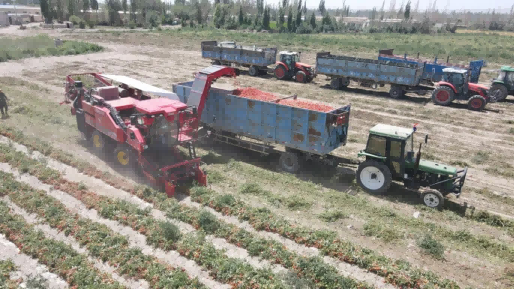

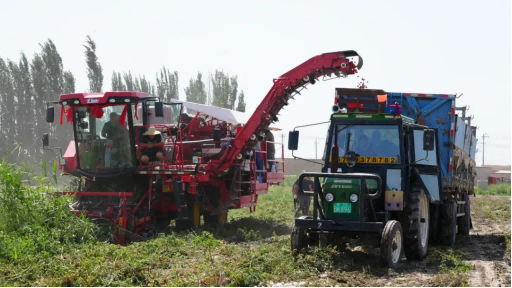

The tomato harvester model 4FZ-1.5 is the first batch of domestic equipment for tomato harvesting, developed and produced by our company independently in 2024, which made it possible to fill a previously existing gap in the domestic market. After several rounds of field testing, our products have demonstrated production rates of up to 85 tons per hour with 2% impurity levels and 1.3% fruit damage (crushing). The technical specifications have reached the international advanced level of similar models.
Specifications
| Parameter | A unit of measurement | Meaning |
Maximum working productivity |
t/h |
80 |
Rated power |
kW/hp |
221 / 296 |
Overall dimensions (L×W×H) – transport position |
mm |
11510 × 3490 × 3650 |
Dimensions (L×W×H) – working position |
mm |
11510 × 5400 × 6200 |
Weight |
kg |
13740 |
Fuel tank volume - main |
l |
220 |
Fuel tank capacity - auxiliary |
l |
180 |
Working width |
mm |
1500–1900 |
Travel system type |
— |
Permanent hydraulic all-wheel drive |
Travel speed: cotton field, 1st gear |
km/h |
0–6 |
Travel speed: Cotton field, 2nd gear |
km/h |
0–9 |
Driving speed - highway, 1st gear |
km/h |
0–16 |
Driving speed: highway, 2nd gear |
km/h |
0–27 |
The mechanism of fruit separation from the vine |
— |
Three-component vibrator |
Number of color sorter channels |
pcs |
48 |
Wheelbase |
mm |
2750 |
Turning radius on the highway |
m |
5.3 |
Turning radius in a cotton field |
m |
4 |
Tire size - guide wheels |
— |
175LR-24 |
Tire size - drive wheels |
— |
175LR-24 |
Track - guide wheels |
mm |
1650 |
Track - driving wheels |
mm |
1650 |
Maximum unloading height |
mm |
4000 |

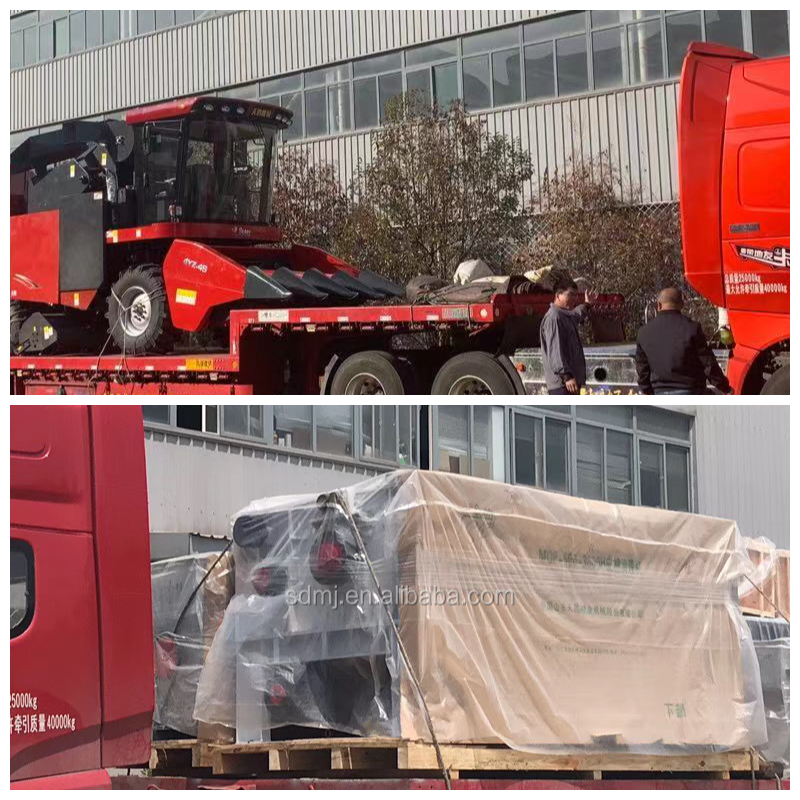

Packaging and delivery
Product Inspection
(1) External inspection: the product's appearance is checked to ensure it meets the requirements for color, shape, size, surface quality, etc. The inspection can be carried out visually or using auxiliary instruments (e.g. microscopes, measuring instruments).
(2) Functional testing: The correct operation of all functions of the product is checked by operating it or using specialized test equipment to confirm performance and operability.
(3) Checking labelling and operating instructions: The accuracy, clarity and completeness of labels and user manuals are checked, as well as their compliance with current regulations and standards.
(4) Safety testing: The product is tested to ensure it meets safety requirements and regulatory standards, including electrical safety, mechanical safety, chemical safety, etc.
Company information

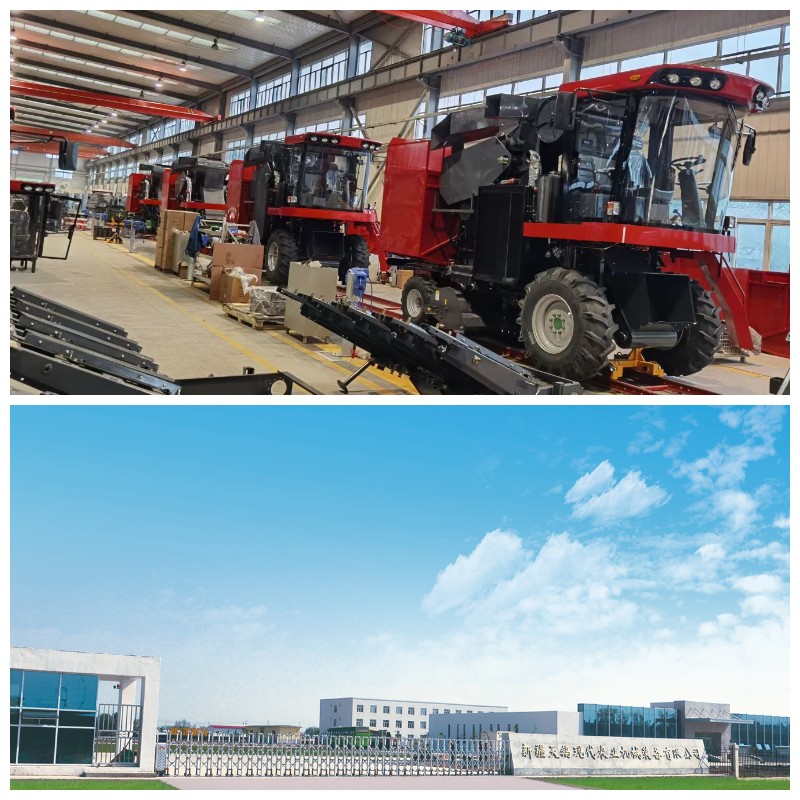

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a public enterprise owned by supply and marketing cooperatives in Shandong Province. Its predecessor was founded in 1946. The company integrates research and development, precision manufacturing, marketing and service services, and capital-intensive operations into a single complex and specializes in providing turnkey solutions for mechanized, intelligent and computer-enabled cotton processing equipment. Products are exported to more than 30 countries. In the domestic market, the company has been a leader in sales volume for many years. The service and marketing network covers all major cotton growing regions of the world.
Based on the production of cotton ginning equipment as its core business, the company actively promotes the modernization and transformation of the cotton industry, creates a new era of smart factories, strives to become the world's leading brand in the field of cotton ginning equipment, expands its activities into the segment of intelligent agricultural machinery, and confidently ranks among the manufacturers of high-tech premium equipment.
Frequently asked questions (FAQ)
Q: Are you a factory or trading company?
Answer: We are a manufacturing enterprise and have four own production sites in Jinan (headquarters), Xinjiang, Inner Mongolia and Montgomery (USA).Question: Where is your headquarters? How can I visit it?
Answer: Our headquarters are located in Jinan, Shandong Province, China. It's about a two-hour flight from Guangzhou and a 1.5-hour high-speed train ride from Beijing. We welcome you anytime!Question: How is quality control organized at your factory?
Answer: Swan was the first in the industry to be certified according to the ISO 9001 quality system and received three international quality certificates from CNACR (China), RAB (USA) and RVA (Netherlands), recognized in 20 countries.Question: What are your payment terms?
Answer: Conditions are discussed individually: prepayment by T/T or irrevocable letter of credit (L/C).Question: What is the delivery time?
Answer: Within 20-50 days of receiving the deposit or the original letter of credit. If you have any additional questions or requests, please feel free to contact us – we will respond as soon as possible.
