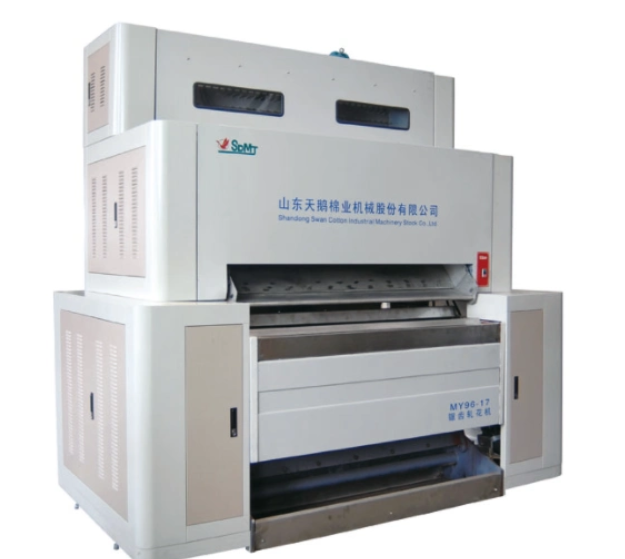

Industrial cotton gin model MY96-17 for raw cotton pre-processing

Product benefits

High cleaning efficiency without fiber damageThe cleaning section features a non-concentric design that provides a gentle shaking cleaning action for raw cotton. The cleaning efficiency reaches over 50%, while the cotton fiber remains intact, free from damage, and retains its original quality characteristics.
Minimal raw material lossEquipped with a special recovery roller that effectively collects uncleaned and missed cotton, significantly reducing raw material loss and enhancing production economic benefits.
Stable and reliable operationThe equipment is specifically designed for small cotton ginning enterprises, featuring stable operation during long-term use, no frequent failures, and high overall reliability.
Simple adjustment and convenient operationThe well-thought-out comprehensive machine design allows for easy adjustment of operating parameters. Maintenance and daily operation do not require complex professional skills, reducing operating costs.
High quality of processed fiberThe ginning quality of cotton fiber fully meets or exceeds the current Chinese national standards for cotton of the corresponding grade, ensuring high quality of the finished product.
Performance adapted to raw materialsThe machine has a flexible production capacity range from 600 to 1300 kg/h, allowing the operating mode to be adapted to different qualities and characteristics of the raw cotton input.

Contact Now E-Mail Telephone WhatsApp

Product Details

Detailed Product Description

Product Introduction

The MY96-17 cotton gin is specialized industrial equipment designed to equip small cotton ginning plants. The main function of the unit is high-quality pre-processing of raw cotton, including separating fiber from cotton seeds and completely removing foreign impurities from the raw material.

The equipment combines high productivity, operational stability, and affordable operation. Thanks to its optimized design, it effectively handles primary cotton processing tasks while preserving fiber integrity and minimizing raw material losses, making it an ideal choice for small and medium-sized cotton processing operations.

Specifications

Parameter	Meaning
Design Capacity	600–1200 kg/hour
Installed power	46.12 kW
Fiber gin quality	Meets or exceeds the national standard for denim cotton of the corresponding grade
Noise level	90 dB(A)
Number of saws	96 pcs.
Saw diameter	Φ320mm
Distance between saws	17 mm
Brush cylinder diameter	Φ380mm
Overall dimensions (W×D×H)	2385×2850×2750 mm
Machine weight	4200 kg

Scope of application

The equipment is designed for primary processing of raw cotton in small and medium-sized cotton ginning enterprises. It is used to clean raw cotton from dust, debris, and other impurities, as well as to effectively separate cotton fiber from seeds. Suitable for processing different varieties of cotton, it adapts to various production conditions and output volumes.

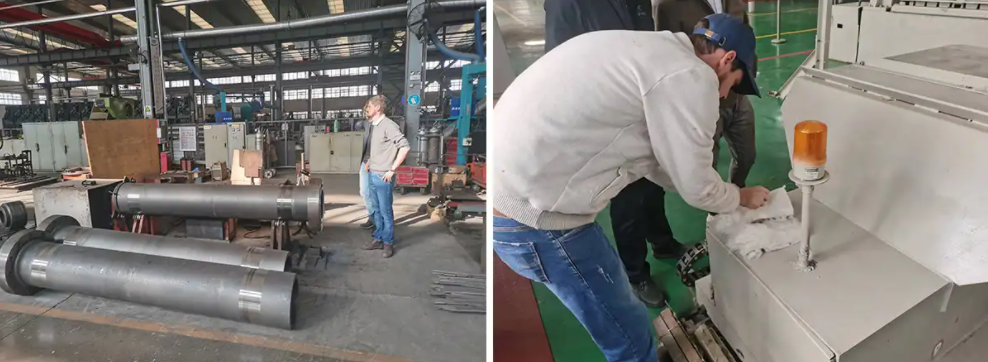

Product quality control

All equipment units undergo strict multi-stage factory inspection before being shipped to the customer:

1. Visual inspection: checking appearance, dimensions, surface quality, and equipment completeness;

2. Functional tests: testing all operating modes, confirming performance and operational characteristics match the stated parameters;

3. Safety check: monitoring electrical, mechanical, and operational safety according to international and national standards;

4. Packaging control: verifying the integrity of packaging materials and correctness of labeling for safe transportation.

Packaging and delivery

We offer customized packaging solutions according to customer requirements. All equipment is securely fixed and reinforced in shipping containers, preventing damage during transportation. The loading and sealing process of containers is documented with photo and video materials, ensuring full transparency in logistics. We cooperate with verified international shipping companies and provide real-time updates on all stages of cargo delivery.

Manufacturer information

Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a major authoritative Chinese manufacturer of cotton processing and ginning equipment, founded in 1946. The company integrates scientific research, design, manufacturing, and service, providing comprehensive intelligent solutions for the cotton industry.

The enterprise holds the status of a high-tech company and participates in China's national scientific programs. Its products are exported to more than 30 countries worldwide and enjoy a high reputation in the international market. The company has modern production centers in China and the United States, ensuring high product quality and professional technical support for customers around the world.
