Six-row self-propelled cotton harvester
High collection efficiency: minimal fiber damage, low impurity content, preservation of the natural appearance of cotton.
Cummins 777hp engine, 4WD and PRO16 high speed head - max harvesting speed of 4.5 mph (7.1 km/h), 30% faster than a standard 6-row box harvester.
Packaging system: controlled uniform discharge + forced feed – reduces blockages; module diameter and bale weight (700–2200 kg) are adjustable to field conditions.
A powerful fan creates an intense air flow, preventing blockages and ensuring effective extraction.
Premium cabin of our own design: gearbox with electro-pneumatic shifting, hydraulic clutch, intuitive HMI interface – maximum operator comfort.
Intelligent CAN bus control system: auto-monitoring, emergency alerts, humidity control, auto-leveling, autonomous control functions and other advanced features.

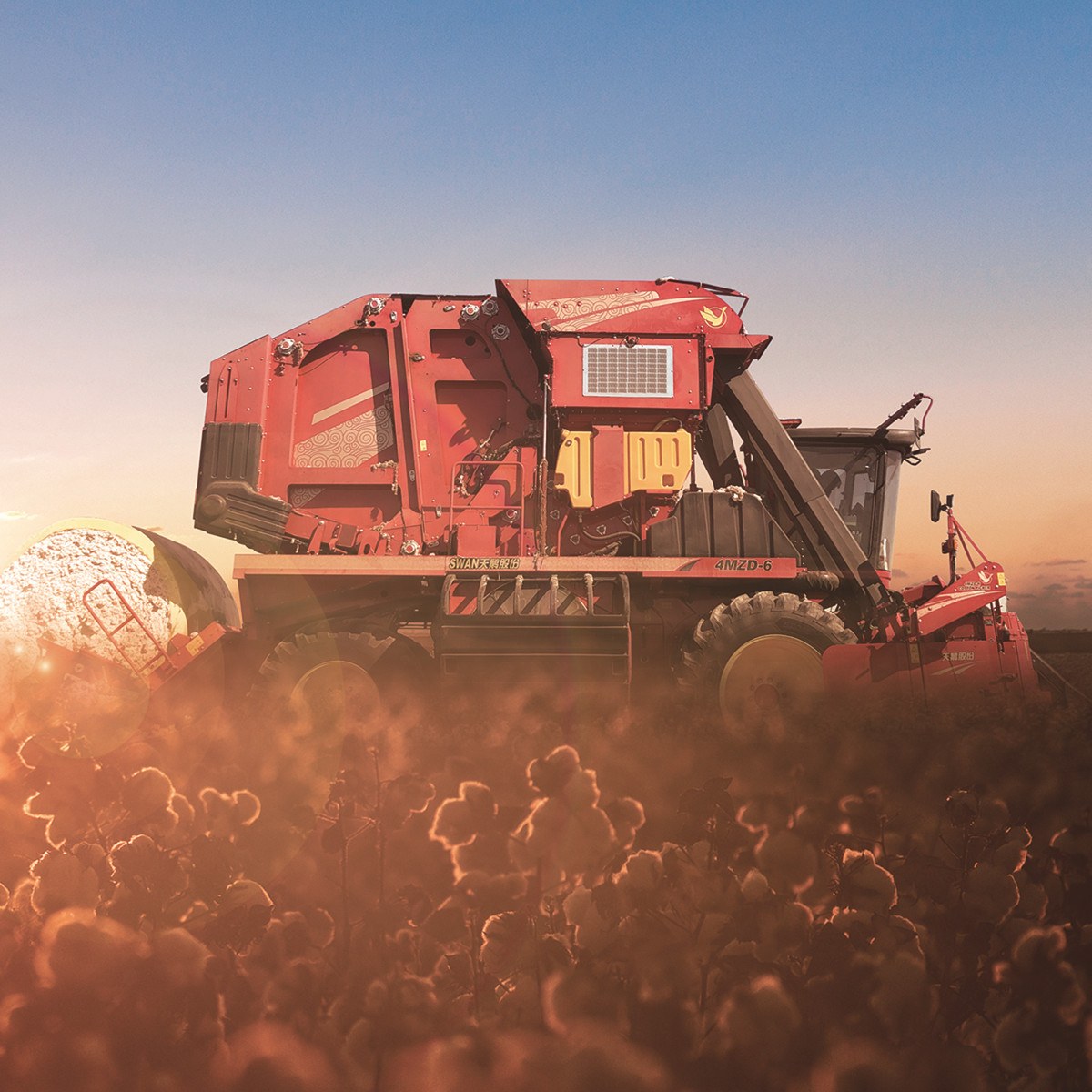

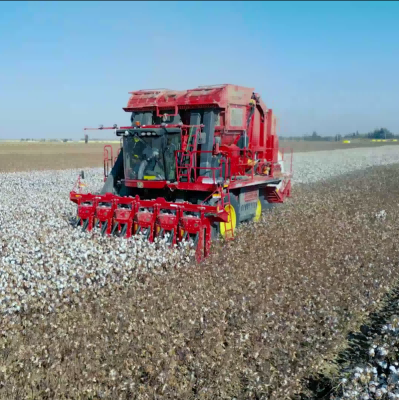

Product: 4MZD-6 - six-row self-propelled cotton harvester with baling
Developed by Shandong Swan in response to the growing demand for high-performance cotton harvesting equipment. The combine performs a full cycle of work: collecting cotton, compacting it into modules and preparing it for transportation - all this with minimal fiber loss. Successfully exploited in Xinjiang, the main cotton region of China. High purity of collection, reliability and stability in operation have provided the model with an impeccable reputation among users.
Advantages
Ergonomic cabin
Design in the spirit of the modern automotive industry: adjustable seat and control panel, climate control, USB port and 12 V socket - everything for operator comfort during a long working day.Guaranteed local support
Each combine harvester is accompanied by a team of 2-3 technicians. Regional warehouses of original spare parts ensure a 24/7 supply—no downtime, no downtime.Maximum performance
770hp Cummins engine + state-of-the-art harvesting head = speeds up to 7.1km/h and over 30% more efficiency.Digital control
All parameters are displayed in real time on the on-board display. The operator instantly receives data for decision-making and workflow optimization.
Specifications
| Indicator | Unit of measure | Meaning |
Weight (without load) |
T |
30 |
Movement speed: |
||
– in the field (I / II gear) |
km/h |
7.1 / 8.5 |
– on the road (I / II gear) |
km/h |
15 / 27 |
Engine power |
kW |
570 |
Min. turning radius |
m |
6,7 |
Dimensions (transport) |
mm |
11,940 × 3,200 × 4,360 |
Dimensions (in operation) |
mm |
10 135 × 5 945 × 5 245 |
Wheelbase |
mm |
4 318 |
Drive |
— |
Full (4WD) |
Cleaning heads |
pcs. |
6 |
Spindles (total) |
pcs. |
3 360 |
Module weight |
kg |
700–2200 |
Fuel tank |
l |
1,400 |
Washing liquid tank |
l |
1 363 |
Lubricant reservoir |
l |
257 |

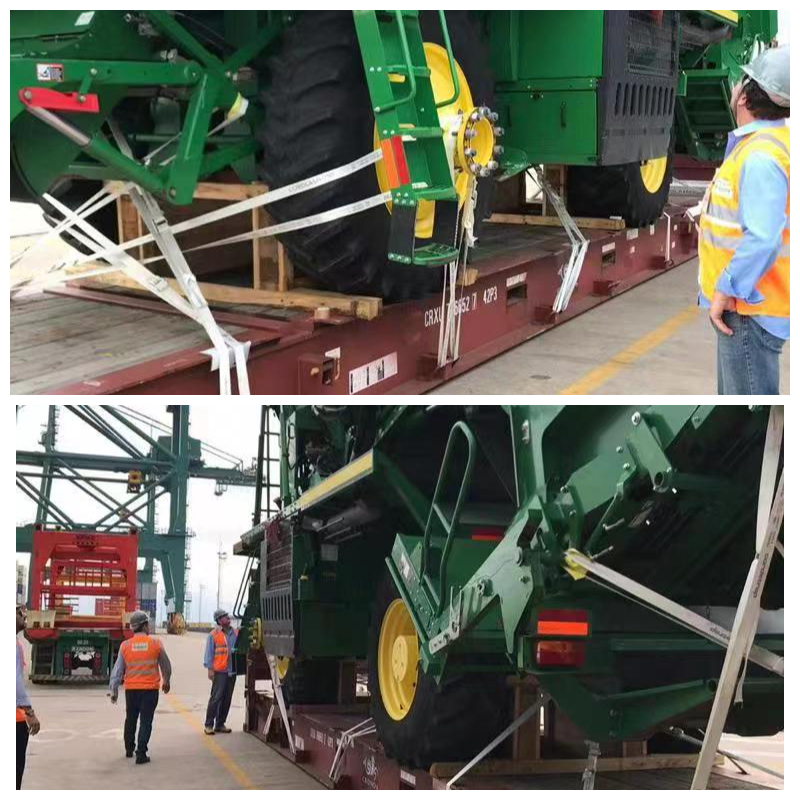

Delivery Features
Due to the non-standard dimensions and design of the combine, during international transportation, special packaging and fastening solutions are used to prevent damage in transit.
Quality control
Each unit undergoes a four-stage check:
External inspection (geometry, coating, color);
Functional tests (operability of all systems);
Verification of markings and instructions;
Tests for compliance with safety standards (electrical, mechanical, chemical).
![Six-row self-propelled cotton harvester.jpg]( "Six-row self-propelled cotton harvester.jpg")
About the company
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a publicly traded company founded in 1946 and part of the Shandong Provincial Cooperative System. Today, it is a technological leader in intelligent cotton machinery, integrating R&D, precision manufacturing, and global service.
Products are supplied to over 30 countries. In China, the company has held the top spot in terms of sales share for several years running. Its service network covers all key cotton-growing regions worldwide.
The company is developing the concept of "smart cotton production," actively investing in intelligent agricultural machinery, and striving to take a leading position in the global high-tech equipment market.
Production and research facilities are located in Jinan (Shandong), Wujiaqu (Xinjiang), Hailar (Inner Mongolia), and Montgomery (USA). It operates three national advanced technology centers and six provincial innovation platforms.
Shandong Swan is an official participant in China's state programs for the implementation of scientific achievements and key research within the framework of the 13th Five-Year Plan.
