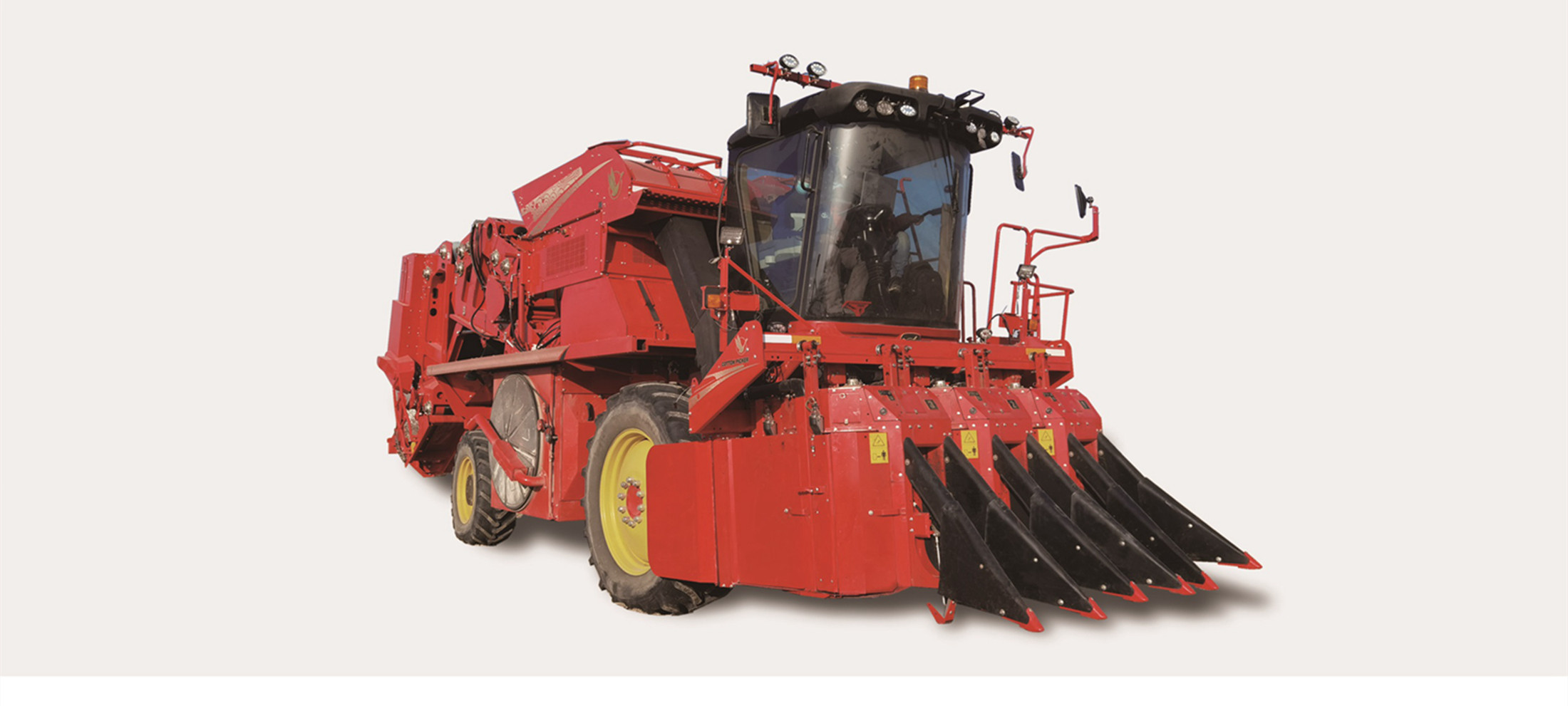

Three-row cotton harvester
1. Cummins 325 hp engine, electro-hydraulic transmission, optional all-wheel drive, max. harvesting speed - 7.1 km/h.
2. PR016 collection head: optimized spindle trajectory and drum speed; efficiency up to 93%, minimal fiber damage and low impurity content.
3. Adjustable, uniform cotton feed + forced loading – reduces blockages; module diameter is adjusted to field conditions.
4. Premium cabin of our own design, “smart” gearbox, hydraulic clutch, ergonomic interface – operator comfort.
5. Intelligent control via CAN bus: auto-monitoring, emergency alarm, humidity control, etc.
6. Imported electronics – reliability; key components – in-house development – low operating costs.
7. In-house management program – flexible updating to meet product development needs.
8. Proven 6-row design with automatic dimension adjustment – convenient for transportation and maintenance.
9. Service and sales – throughout the cotton-growing regions of Xinjiang: training, maintenance, and a guarantee of worry-free operation.
Product Description
The 4MZD-3 three-row cotton picker is a new product, independently developed by our company in response to market demand. It is widely used in cotton harvesting in Xinjiang, China's main cotton-growing region. Its high maneuverability, low failure rate, and stable operation have earned it unanimous positive reviews from users.

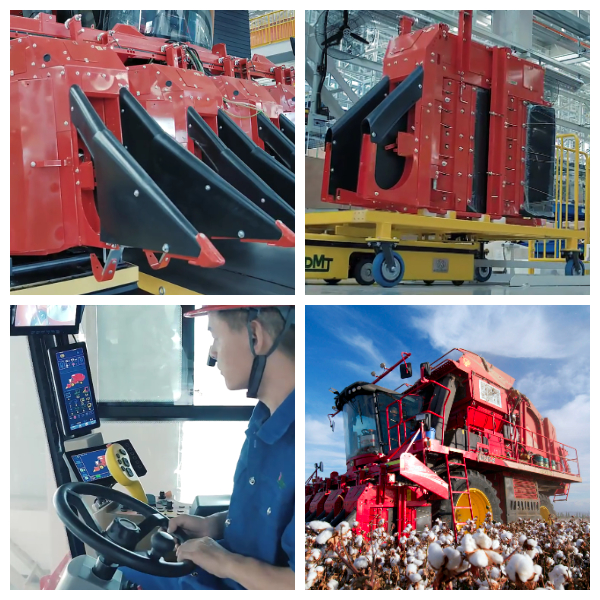

Product details
(1) Car-Style Cab: A luxurious and comfortable cabin with adjustable seats and controls to meet the operator's individual needs. Equipped with air conditioning, a USB port, and a 12V power source, it provides the operator with an excellent working environment.
(2) Improved service: Each cotton harvester is assigned 2-3 maintenance and repair technicians to ensure smooth operation of the machine and prompt troubleshooting. Spare parts warehouses have been created in the areas where the equipment is used, allowing for round-the-clock supplies of original components, guaranteeing customers reliability and high quality.
(3) Improved performance: Equipped with a more powerful 325 HP Cummins engine. (242 kW) and the latest design cotton picker head; The maximum cleaning speed reaches 7.1 km/h.
(4) Intelligent control: the system allows you to monitor the condition of the combine and various operating parameters in real time, as well as quickly adjust the work plan based on the statistics obtained.
Specifications
Parameter
A unit of measurement
Meaning
Main parameters of the machine |
||
Own weight |
T |
24 |
Travel speed |
Cotton field, 1st gear |
km/h |
Cotton field, 2nd gear |
km/h |
|
Highway, 1st gear |
km/h |
|
Highway, II gear |
km/h |
|
Engine power |
kW (hp) |
424 (325) |
Minimum turning radius |
m |
6 |
Dimensions during transportation (L x W x H) |
mm |
11010 × 3300 × 3900 |
Dimensions when working (L x W x H) |
mm |
9680 × 4200 × 4600 |
Wheelbase |
mm |
4095 |
Drive type |
— |
Full (4WD) |
Cotton pickup head parameters |
||
Number of cotton picking heads |
pcs. |
3 |
Number of tube seats |
pcs. |
Front - 16, rear - 12 |
Number of removable spindles per tube |
pcs. |
20 |
Total number of spindles |
pcs. |
1680 |
Operating parameters |
||
Cotton module weight |
kg |
1400 |
Fuel tank capacity (diesel) |
l |
600 |
Volume of the washing liquid tank |
l |
700 |
Lubricant tank capacity |
l |
140 |

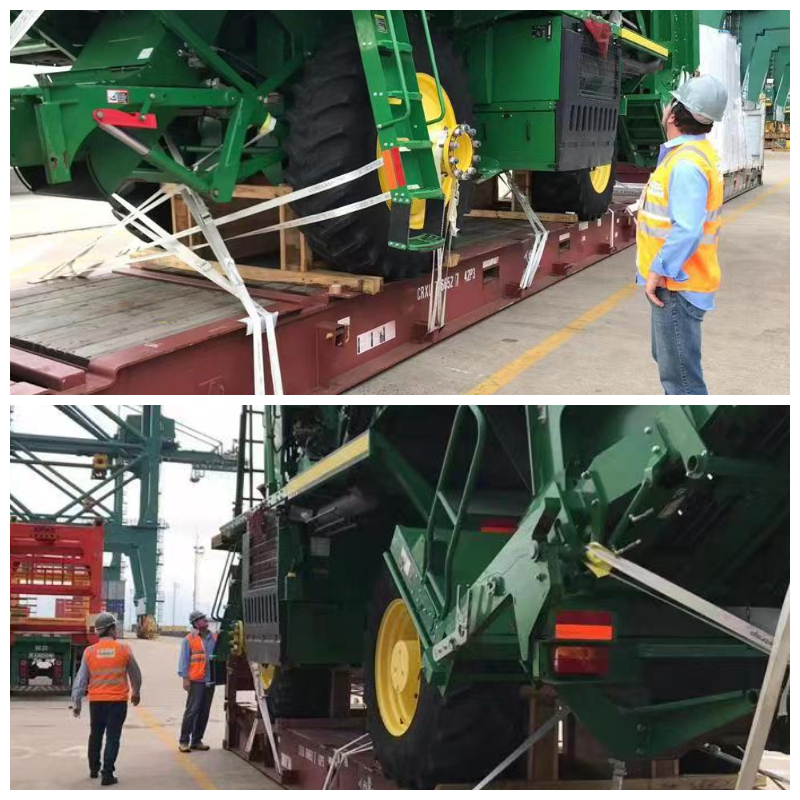

Transportation Features
Based on previous delivery experience, the design and dimensions of the cotton harvester differ from standard equipment. Therefore, when shipping internationally, we use special packaging solutions and securing systems to ensure safe, damage-free delivery.
Product Inspection
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. carries out strict comprehensive inspection of each unit of production, including the following steps:
(1) External inspection: checking whether the product’s appearance meets the requirements – color, shape, size, surface quality, etc. Inspection can be performed visually or using auxiliary instruments (e.g. microscopes, measuring instruments).
(2) Functional testing: checking the correct operation of all functions of the product by operating it or using specialized test equipment to confirm the performance characteristics.
(3) Checking labelling and operating instructions: Ensure that labels and user manuals are accurate, clear, complete and comply with regulatory requirements.
(4) Safety testing: checking the product's compliance with applicable safety standards and regulations, including electrical, mechanical and chemical safety.
Company information
"Shandong Swan Cotton Industrial Machinery Stock Co., Ltd." is a public company owned by the Shandong Province Cooperative Union. Its predecessor was founded in 1946. The company integrates research and development, precision manufacturing, marketing services and capital management into a single complex and specializes in providing comprehensive solutions and services for mechanized, intelligent and computerized cotton processing equipment. Products are exported to more than 30 countries. For several years, the company has occupied a leading position in the domestic market. The service and distribution network covers all major cotton regions of the world.
Based on the production of cotton harvesting equipment as its core business, the company actively promotes the modernization and transformation of the cotton industry, creates a new era of smart factories, strives to become the world leader in the field of cotton harvesting equipment, actively expands its presence in the field of intelligent agricultural machinery, and confidently ranks among the world-class high-tech equipment manufacturers.
The company has four technical centers and production sites in Jinan (Shandong Province), Wujiaqu (Xinjiang), Hailar (Inner Mongolia) and Montgomery (USA), owns three national high-tech enterprises and six provincial innovation platforms, leading the technological development of the industry for many years. The company is recognized as a high-tech enterprise in Shandong Province, is a technical support center for the “National Program for the Priority Introduction of Scientific and Technological Achievements” and is the executor of key projects of the National Research and Development Program within the framework of the “13th Five-Year Plan”.
