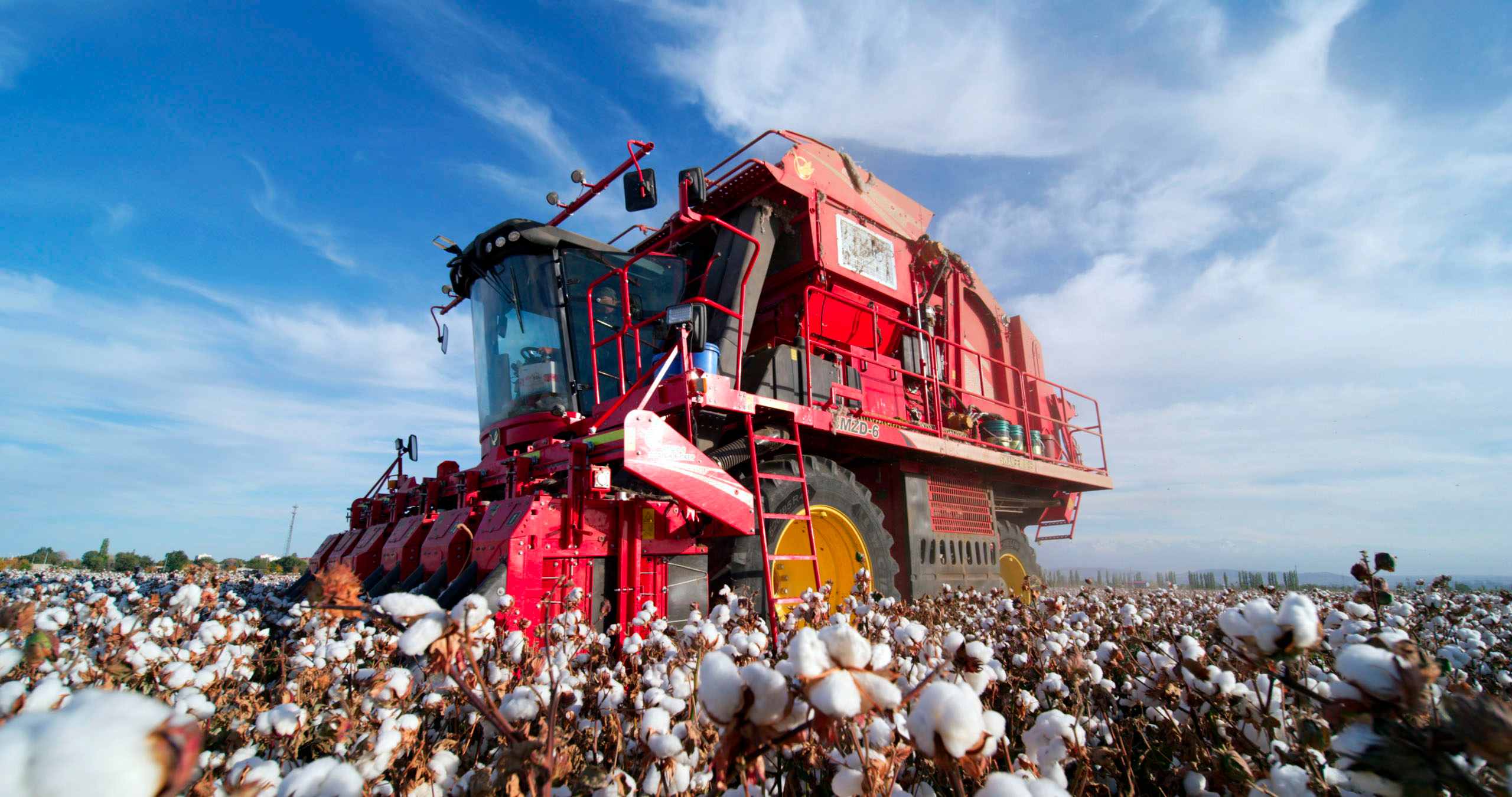

Three-row self-propelled cotton harvester
Cummins engine, 325 hp, electronically controlled hydraulic transmission, optional all-wheel drive, max. harvesting speed - 7.1 km/h.

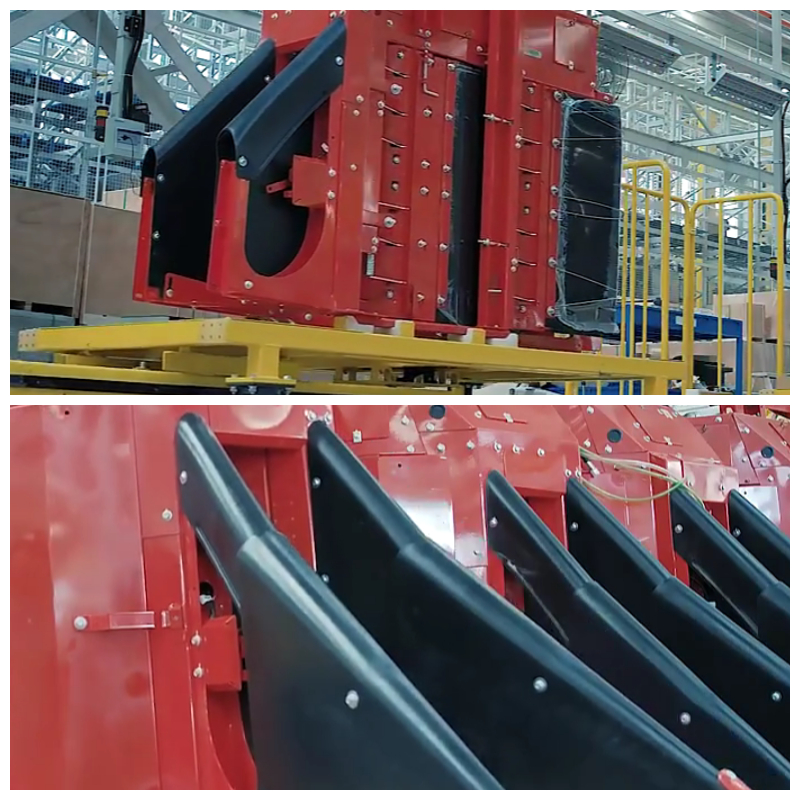

The advanced PR016 collecting head features optimized spindle paths and drum speeds, achieving collection efficiency of up to 93%, minimal fiber damage, and low impurity content.
Controlled, uniform feed and forced loading ensure reliable protection against clogging; the module diameter is adjustable to field conditions.
Premium cabin of our own design: gearbox with electro-hydraulic shifting, fluid coupling, ergonomic HMI interface – maximum operator comfort.
Intelligent control via CAN bus: auto-monitoring, emergency alarm, humidity measurement and other functions.
Imported electronics ensure stability and reliability; key components are our own design, ensuring low operating and maintenance costs.
In-house management software – flexible updates for product development needs.
Proven 6-row design with automatic dimension adjustment – convenient for transportation, road use and maintenance.
The sales and service network covers all cotton-growing regions of Xinjiang, providing operator training, technical maintenance, and a guarantee of trouble-free operation.
Product presentation

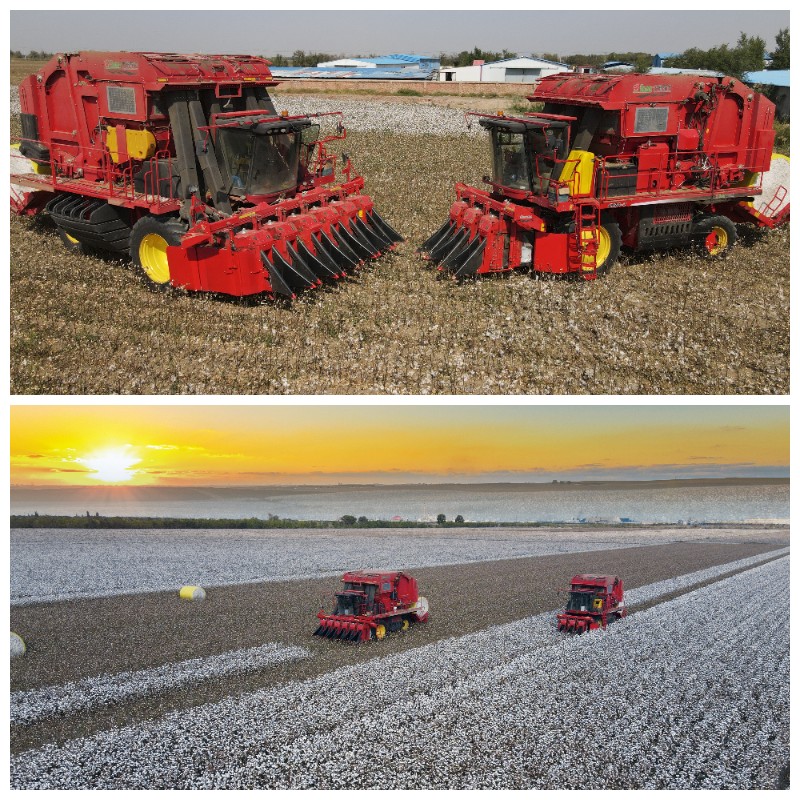

The 4MZD-3 cotton harvester with a three-row collection system is the latest development of our company, created taking into account the needs of the market. This model has already been successfully used for cotton harvesting in Xinjiang, China's leading cotton-producing region. Thanks to its high maneuverability, reliability, low probability of breakdowns and stable performance characteristics, the combine has received well-deserved recognition among farmers and agricultural specialists.
Key Benefits
Premium automotive-style cabin
Ergonomically designed workstation with adjustable seat and controls to suit any operator preference. Air conditioning, a USB port and a 12V socket are included as standard for maximum comfort while working.Full turnkey service support
Each combine harvester is assigned a team of 2-3 certified maintenance engineers to ensure smooth operation and prompt troubleshooting directly in the field. Warehouses with genuine spare parts are located in the work areas, guaranteeing 24/7 supply and maintaining high-quality repairs.High performance
The machine is equipped with a powerful Cummins diesel engine (325 hp, 424 kW) and a modern three-row harvesting head. A maximum operating speed of 7.1 km/h allows for efficient cotton harvesting, even in tight deadlines.Intelligent control system
All key combine operating parameters are monitored in real time. Based on the data obtained, the process can be instantly adjusted and the harvesting plan optimized, increasing overall efficiency.
Specifications
Parameter |
Unit of measure |
Meaning |
General Settings |
||
Curb weight |
T |
24 |
Movement speed (field): |
km/h |
0–7.1 |
Travel speed (road): |
km/h |
0–15 |
Engine power |
kW (hp) |
424 (325) |
Min. turning radius |
m |
6 |
Dimensions (transport position, L×W×H) |
mm |
11 010 × 3 300 × 3 900 |
Dimensions (working position, L×W×H) |
mm |
9 680 × 4 200 × 4 600 |
Wheelbase |
mm |
4 095 |
Drive |
— |
Full (4WD) |
Cotton picking head |
||
Number of heads |
pcs. |
3 |
Number of spindle slots: front / rear |
pcs. |
16 / 12 |
Spindles per socket |
pcs. |
20 |
Total number of spindles |
pcs. |
1 680 |
Operational volumes |
||
Cotton module weight |
kg |
1,400 |
Fuel tank (diesel) |
l |
600 |
Washing liquid tank |
l |
700 |
Lubricant reservoir |
l |
140 |
Transportation Features

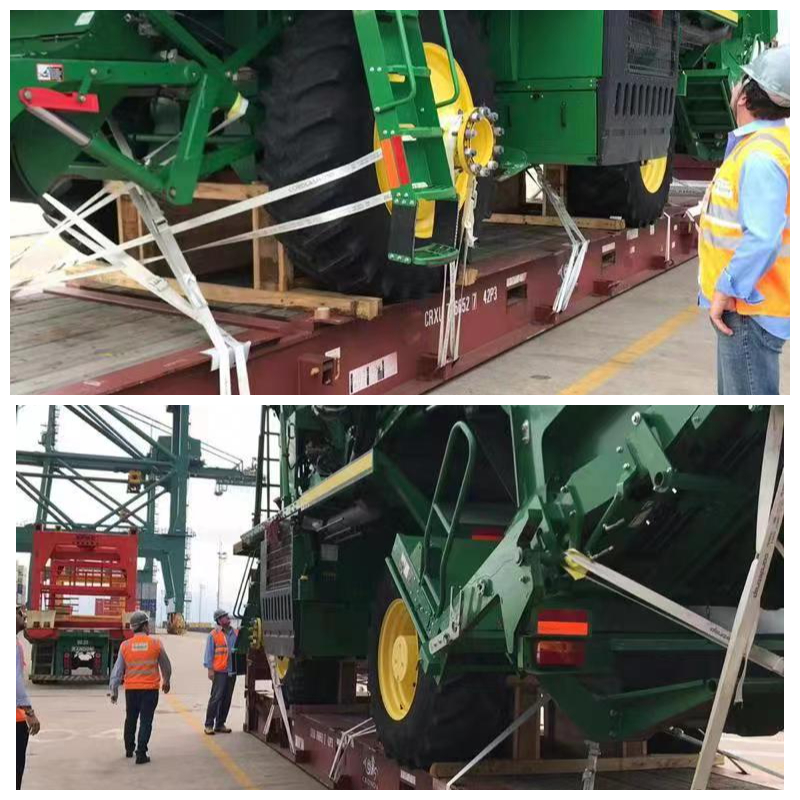

Given the unique dimensions and design features of the cotton harvester, which distinguish it from standard agricultural machinery, we use specialized packaging and securing solutions for international shipments. This ensures the integrity of the equipment during delivery anywhere in the world.
Quality control
Each unit of equipment undergoes strict multi-stage control at the Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. plant:
External inspection – checking the color, shape, size and quality of surfaces (visually or using measuring instruments).
Functional testing is testing of all systems in operating mode using specialized equipment.
Checking labelling and documentation – ensuring that labels and manuals comply with legal requirements and international standards.
Safety - assessment of compliance with electrical, mechanical and chemical safety standards.
![Three-row self-propelled cotton harvester.jpg]( "Three-row self-propelled cotton harvester.jpg")
About the company
Shandong Swan Cotton Industrial Machinery Stock Co., Ltd. is a public company affiliated with the Shandong Provincial Supply and Marketing Cooperative. The roots of the company go back to 1946. Today, the company integrates R&D, precision manufacturing, global marketing and financial management to provide customers with complete turnkey solutions for mechanized, digital and smart cotton processing.
The company's products are exported to more than 30 countries, and the Shandong Swan brand has consistently held a leading position in the Chinese domestic market for many years. An extensive service network covers all key cotton growing regions around the world.
Focusing on cotton harvesting machinery as its core business, the company is actively promoting the digital transformation of the cotton industry, introducing “next-generation smart factories” and striving to take a leading position in the global cotton machinery industry. At the same time, Shandong Swan is developing the direction of intelligent agricultural machinery and is confidently developing the market of high-tech industrial equipment.
The company has four research and production centers in Jinan (Shandong), Wujiaqu (Xinjiang), Hailar (Inner Mongolia) and Montgomery (USA), and also owns three national high-tech enterprises and six provincial innovation platforms.
Shandong Swan is recognized as the leader in technological progress in the industry, is the official executor of the National Program for the Priority Introduction of Scientific and Technological Achievements, and is a key participant in the national research and development program of the 13th Five-Year Plan.
