Saw blade gin
The machine is made of special materials, rationally designed, stable and reliable.
A comb made of a special material with a unique tooth shape ensures a long service life, high-quality cleaning and minimal damage to fibers.
The debris removal knife effectively removes debris with minimal fiber loss.
The modern clamping, removal and feeding system reduces fiber damage and the risk of equipment failure.
The new design of the feed roller and fixed feed point ensures stable carding and eliminates the release of “white cotton”.
The rational arrangement of the knife discharge zones improves cleaning and fiber quality.

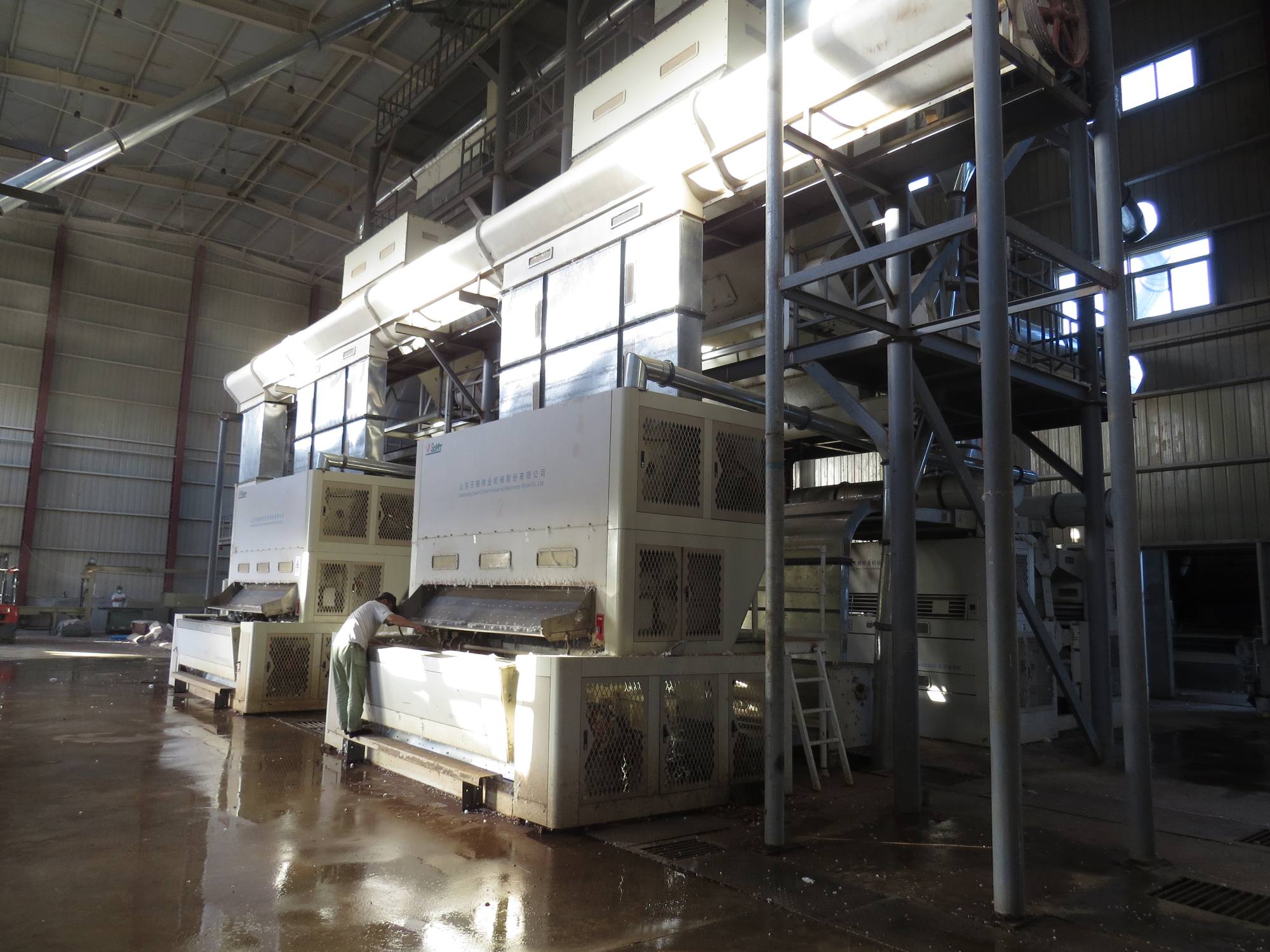

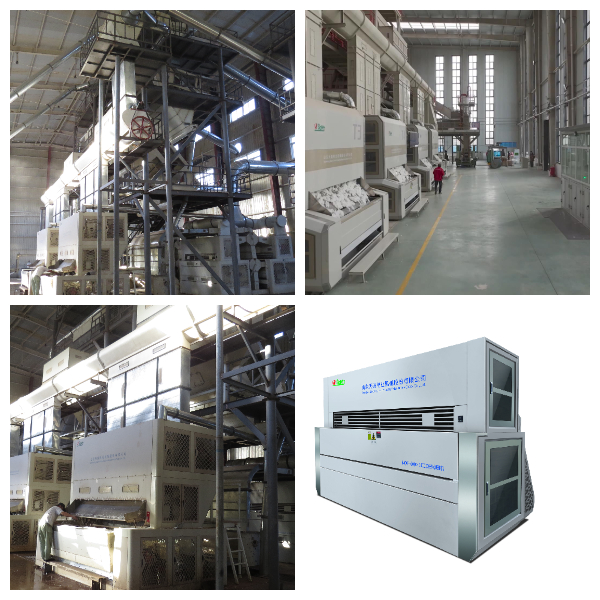

Saw-Type Lint Cleaner
1. Introduction to the product
Sawtooth cleaners are widely used to improve the overall quality of cotton fiber after ginning by removing foreign impurities and short fibers.
The Swan fiber cleaner features stable operation, high product quality, and significantly improves the quality of the cleaned fiber.
2. Main technical parameters
Model
Barbed drum diameter (mm)
Design capacity (kg/h)
Installed capacity (kW)
Overall dimensions (mm)
Mass (kg)
MQP-400×2000H |
Φ400 |
1000–1800 |
19 |
2800×1325×2285 |
3400 |
MQP-400×2500H |
Φ400 |
1300–2100 |
22.5 |
3300×1325×2295 |
4500 |
MQP-400×3400H |
Φ400 |
2400–3600 |
37.5 |
4300×1510×2295 |
7000 |
MQP-600×2000H |
Φ600 |
1200–2000 |
22.5 |
2800×1600×2615 |
4100 |
MQP-600×3000H |
Φ600 |
2400–3600 |
27.5 |
3750×1660×2615 |
6600 |
Note:
The stated productivity is calculated for standard grade cotton with a moisture content of 6.5–8.5%.
3. Packaging and delivery
We have an experienced packing and loading team to ensure the safety and integrity of your equipment during packing and transportation.
Each vehicle is securely fastened and fixed inside the container, guaranteeing safe delivery to the port of destination.
The entire process of loading and sealing the container is documented by photo or video recording—the process is completely transparent and controllable.
We partner with reliable shipping companies; information on key stages of transportation is updated in real time.
![MYZ215 Cotton Ginning Machine.jpg]( "MYZ215 Cotton Ginning Machine.jpg")
4. Product inspection
Functional testing: assesses the correct operation of the equipment. Testing is performed in operating mode or using specialized equipment to verify performance and functionality.
Checking labelling and operating instructions: checking the accuracy, completeness and clarity of labelling and documentation, as well as their compliance with applicable standards and regulatory requirements.
Safety testing: checking the product's compliance with safety requirements, including electrical, mechanical, chemical and other types of testing.
Testing of materials and components: verification of compliance of the materials and components used with established requirements using chemical analysis, spectral analysis, tensile testing and other control methods.
